Carrying out bleeding operation - AR42.10-P-0010-02SX
WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
FRONT AXLE BRAKE CALIPER
| Number |
Designation |
Model 211 except model 211.076/077/276/277 |
Model 211.076/077/276/277 |
| BA42.10-P-1002-10H |
Bleed screw to brake caliper |
Nm |
14 |
14 |
FRONT AXLE BRAKE CALIPER
| Number |
Designation |
Model 216 except model 216.374/377/379 |
Model 216.374/377/379 |
| BA42.10-P-1001-10M |
Bleed screw to brake caliper |
Nm |
14 |
16 |
FRONT AXLE BRAKE CALIPER
| Number |
Designation |
Model 221 except model 221.074/077/174/177/179 |
Model 221.074/077/174/177/179 |
| BA42.10-P-1001-10M |
Bleed screw to brake caliper |
Nm |
14 |
16 |
FRONT AXLE BRAKE CALIPER
| Number |
Designation |
Model 219.372/376/377 |
Model 219.322/354/356/357/375 |
| BA42.10-P-1002-10B |
Bleed screw to brake caliper |
Nm |
14 |
14 |
REAR AXLE BRAKE CALIPER
| Number |
Designation |
Model 211 except model 211.076/077/276/277 |
Model 211.076/077/276/277 |
| BA42.10-P-1001-12H |
Bleed screw to brake caliper |
Nm |
14 |
14 |
REAR AXLE BRAKE CALIPER
| Number |
Designation |
Model 216 except 216.374/377/379 |
Model 216.374/377/379 |
Model 221 except model 221.074/077/174/177/179 |
Model 221.074/077/174/177/179 |
| BA42.10-P-1001-12M |
Bleed screw to brake caliper |
Nm |
14 |
23 |
14 |
23 |
REAR AXLE BRAKE CALIPER
| Number |
Designation |
Model 219 |
| BA42.10-P-1001-12B |
Bleed screw to brake caliper |
Nm |
14 |

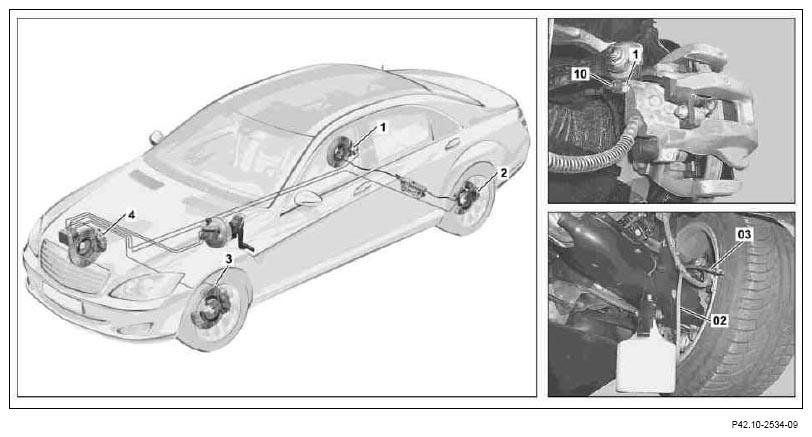

Opening sequence on 1, 2 or 4 piston brake calipers on front axle
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

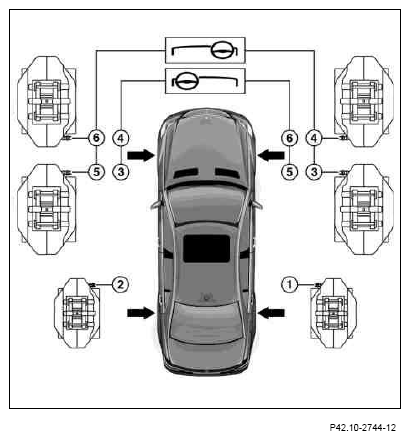

Opening sequence on 6 or 8 piston brake calipers on front axle
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Opening sequence for model 221 with code (Z07) maximum protection
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
- Set bleeding pressure on filling and bleeding unit to 2 bar.
- Remove caps (10) for bleed screws (1, 2, 3, 4, 5, 6) on brake calipers.
- Fit bleed wrench (03) and bleed hose (02) on bleed screw (1).
- Open bleed screw (1).
- 5.1 Bleed the hydraulic system of the brake system (after the hydraulic system was opened for repair):
Fully depress brake pedal repeatedly, until new bubble-free brake fluid flows out at the bleed screw (1).
To bleeding the brake system correctly it is absolutely essential to pump the brake pedal throughout the entire bleeding process. Otherwise brake system malfunctions and a failure of the brake system can occur due to remaining residual air.
In order to avoid the intake of air, do not pump the brake pedal in a jerking manner, but gradually release.
The bleed screw (1) can remain open during the entire pumping process.
Required total quantity of brake fluid: approx. 1.5 l.
- 5.2 Replace brake fluid (service 4, hydraulic system of brake system was not previously opened for repair):
Keep bleed screw (1) open until new brake fluid flows out.
Pumping the brake pedal not required.
Required total quantity of brake fluid: approx. 0.75 l.
- 6 Close bleed screw (1).
- 7 Repeat process at bleed screws (2, 3, 4, 5, 6).
The numbering of the bleed screws (1, 2, 3, 4, 5, 6) indicates the opening sequence.
For 6, or 8-piston brake calipers on the front axle and for vehicles with code (Z07) Maximum protection: Note different sequence for left and right-hand drive vehicles.
- 8 Detach bleed hose (02) and bleed wrench (03) and fit caps (10) to bleed screws (1, 2, 3, 4, 5, 6).
