Remove/install radius rod - AR35.20-P-0111T

MODEL 211.0

MODEL 211.2 with CODE (489) Airmatic (semi-active air suspension)

Shown on model 211 with steel suspension

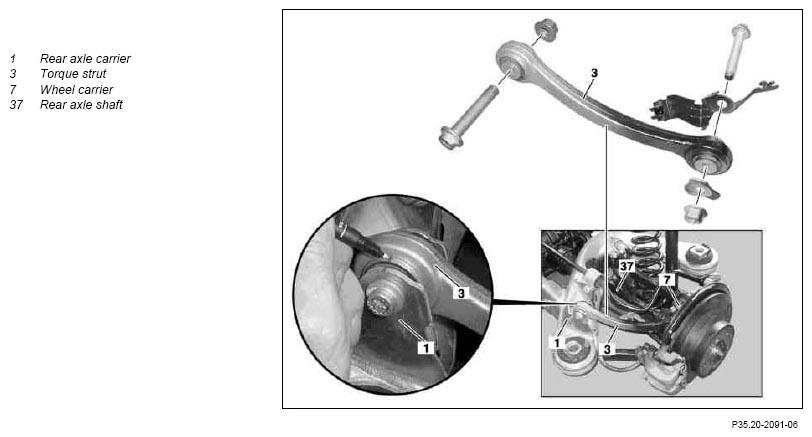

Fig 1: Identifying Radius Rod Components (Model 211 With Steel Suspension)
G07505674Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211 with Airmatic

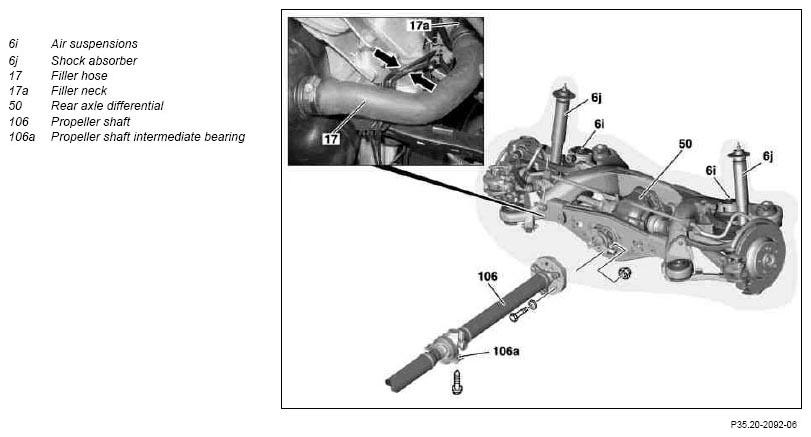

Fig 2: Identifying Radius Rod Components (Model 211 With Airmatic)
G07505675Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

6.3.06 Clamp off filler hose of fuel tank replaced by empty fuel tank Step 19
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  caused by body parts being jammed or crushed. Risk of injury  to skin and eyes caused by brake fluid spraying out at high pressure when working on the SBC brake system Deactivate SBC brake system using STAR DIAGNOSIS. AS42.46-Z-0001-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES While working on the rear axle, care must be taken to ensure that the surface of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
INSTALLATION IMPORTANT Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition.
1 Deactivate SBC brake system using STAR DIAGNOSIS. Vehicles with Sensotronic Brake Control (SBC)
The following steps should be run through in STAR DIAGNOSIS:
Select menu item "SBC-Sensotronic Brake Control"/"Deactivate 'SBC' system".
Then process all the individual steps from top to bottom.
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
    STAR DIAGNOSIS diagnosis system *WH58.30-Z-1048-13A
2 Empty air springs (6i) completely using STAR DIAGNOSIS Vehicles with AIRmatic (semi-active air suspension), code 489 AR32.22-P-1500-04T
NOTES Special information on AIRmatic   AH32.22-P-1000-02T
    SPECIAL TOOL Figure
    NOTESInstallation:  The filling process of the air springs should be observed otherwise they will be irreparably damaged: AR32.22-P-1500-03T
    TORQUE SPECIFICATION *BA32.25-P-1008-04B
    TORQUE SPECIFICATION *BA32.25-P-1009-04B
    COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1002-15A
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
    STAR DIAGNOSIS diagnosis system *WH58.30-Z-1048-13A
3 Secure vehicle on the lifting platform   AR00.60-P-0100T
4.1 Remove rear muffler Model 211.004/ 006/ 206/ 007/ 008/ 208 AR49.10-P-4951T
Model 211.020 /220 /022 /222 /084 / 089 /284 /289 AR49.10-P-4951TI
Type 211.029 AR49.10-P-4951TJ
4.2 Remove exhaust system as of flange connection Model 211.016/ 216 AR49.10-P-7280T
Model 211.028 AR49.10-P-7280TC
4.3 Detach complete exhaust system Model 211.061 /065 /070 /076 /077 / 261 /265 / 270 /276 /277 /080 /082 / 083 /280 /282 /283 AR49.10-P-7000TB
Model 211.041 /241 /042 /242 AR49.10-P-7000TK
Model 211.054 /056 /072 /087 /090 /092 /254 /256 /272 /287 /290 /292 AR49.10-P-7000TS
4.4 Remove exhaust system from pipe connection Model 211.023 /026 /223 /226 AR49.10-P-7281T
5 Remove rear section components on underfloor paneling   AR61.30-P-1001T
6 Unhook rear brake cables from automatic slack adjuster for parking brake   AR42.20-P-0525T
7 Detach propeller shaft (106) from flange on rear axle center assembly (50) IMPORTANT Apply color markings indicating position of propeller shaft relative to rear axle center assembly and propeller shaft intermediate bearing (106a) to ensure that components are fitted at correct ex factory installation positions on reinstallation, otherwise vibration may occur along drivetrain.
IMPORTANT Flexible disk remains on propeller shaft.
IMPORTANTInstallation:  Attach the propeller shaft. AR41.10-P-0050-04I
TORQUE SPECIFICATION *BA41.10-P-1002-01A
8 Detach fitting sleeves of flexible coupling on flange of rear axle center assembly (50)   AR41.10-P-0050-09DA
REFER TO SHOP-MADE TOOLS Drift for loosening fitting sleeves in flex disks.   WF58.50-P-4110-01A
9 Unscrew bolts from propeller shaft intermediate bearing (106a) and remove rear part of propeller shaft (106) IMPORTANTInstallation:  Assemble propeller shaft in correct position. Only tighten the bolts of the propeller shaft intermediate bearing after attaching the flexible coupling to the rear axle center assembly (50): AR41.10-P-0050-05DA
    TORQUE SPECIFICATION *BA41.40-P-1001-01A
REFER TO CAPACITIES & SPECIFICATIONS Long-life grease (NLGI grade 2) Sheet 266.2 BB00.40-P-0266-02A
10 Remove rear wheels.
REFER TO MAINTENANCE Remove/install wheels, rotate if necessary   AP40.10-P-4050Z
11.1 Remove rear brake pads Except model 211.076/ 276/ 077/ 277
NOTES Secure rear brake caliper to vehicle to relieve load on brake hose to prevent brake hose from being damaged during repair work.		 AR42.10-P-1700R
11.2 Detach brake caliper from rear axle Model 211.076 /276 /077 /277
NOTES Secure rear brake caliper to vehicle to relieve load on brake hose to prevent brake hose from being damaged during repair work.		 AR42.10-P-0080RA
12 Remove fender liners from rear fenders Vehicles with AIRmatic (semi-active air suspension), code 489 AR88.10-P-1400T
13 Disconnect electrical connectors of brake and chassis components at the rear axle Vehicles with AIRmatic (semi-active air suspension), code 489 AR32.22-P-1500-01TH
14 Unclip electrical feed lines (arrows) for left and right rear RPM sensors along with the right rear brake pad contact sensor to remove them from their retaining clamps. Vehicles without AIRmatic
15.1 Pry air springs (6i) off the frame floor using assembly lever. Vehicles with AIRmatic (semi-active air suspension), code 489
IMPORTANT The retaining clips of the air springs are destroyed in the process.
IMPORTANTInstallation:  Slide on the air springs until the new retaining clips can be heard engaging in the frame floor. The air springs should be aligned and should not have kinks.
15.2 Remove left and right rear springs Vehicles without AIRmatic
Model 211.0 except model 211.08 /09 AR32.20-P-0230P
Model 211.08/ 09 AR32.20-P-0230T
16 Detach left and right shock absorbers (6j) from spring control arms Vehicles with AIRmatic (semi-active air suspension), code 489
TORQUE SPECIFICATION *BA32.25-P-1002-03G
17 Raise wheel carrier (7) with transmission jack and transmission platform until the rear axle shaft (37) is approximately horizontal COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1018-11A
COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1030-11A
18 Detach torque strut (3) from wheel carrier (7) TORQUE SPECIFICATION *BA35.20-P-1002-03C
19 Drain fuel tank. Vehicles with diesel engine except engine 629 AR47.10-P-4001T
Engine 629 AR47.10-P-4001TJ
Vehicles with gasoline engines AR47.10-P-4001TB
20 Remove fuel tank filler hose (17)
21 Lower rear axle carrier (1).   AR35.10-P-0020-01T
TORQUE SPECIFICATION *BA35.10-P-1001-01E
TORQUE SPECIFICATION *BA35.10-P-1002-01E
COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1018-11A
COMMERCIALLY AVAILABLE TOOLS *WE58.40-Z-1030-11A
22 Use felt marker to mark installation position of torque strut (3) on rear axle carrier (1) and on the torque strut (3) NOTES Do not use scratches or notches to mark the components, as this could reduce their service life.
23 Detach torque strut (3) from rear axle carrier (1) and remove. IMPORTANTInstallation:  Transfer installation position marking to new torque strut and bolt torque strut to rear axle carrier in the correct position.
TORQUE SPECIFICATION *BA35.20-P-1001-03C
24 Replace retaining clips of air springs (6i) Vehicles with AIRmatic (semi-active air suspension), code 489 AR32.22-P-1500-02T
25 Install in the reverse order
26.1 Activate SBC brake system using STAR DIAGNOSIS Vehicles with Sensotronic Brake Control (SBC)
IMPORTANT The following steps should be run through in STAR DIAGNOSIS: Select "Initial startup following repair"/"Replacement of brake disks" menu item. Then process all the individual steps from top to bottom.
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
    STAR DIAGNOSIS diagnosis system *WH58.30-Z-1048-13A
DANGER Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. Before starting engine, actuate brake pedal several times until the pressure is built up and maintained in the brake system. AS42.50-Z-0002-01A
26.2 Press the brake pedal several times until the brake pads contact the brake disks Vehicles with Adaptive Brake (ABR)
IMPORTANT Firm resistance should be noticeable at the brake pedal.
27 Perform chassis alignment   AR40.20-P-0200T
DRIVESHAFT

Number Designation Model 211
BA41.10-P-1002-01A Self-locking nut, flexible coupling to rear propeller shaft or rear axle differential. M10 Nm 40
M12 Nm 60
PROPELLER SHAFT INTERMEDIATE BEARING

Number Designation Model 211
BA41.40-P-1001-01A Bolt, propeller shaft intermediate bearing to frame floor assembly Self-tapping screw Nm 25
Bolt with washer Nm -
Bolt with collar and self-centering tip Nm -
Bolt with collar and without self-centering tip Nm -
REAR AXLE CARRIER

Number Designation Model 211
BA35.10-P-1001-01E Self-locking bolt, front rear axle carrier rubber mount to frame floor Stage 1 Nm 90
Stage 2 ∠° 60
BA35.10-P-1002-01E Self-locking bolt, rear axle carrier rear rubber mount to frame floor Stage 1 Nm 90
Stage 2 ∠° 60
REAR AXLE SHOCK ABSORBER

Number Designation Model 211.0 with code 489a AIRmatic Model 211.2/6
BA32.25-P-1002-03G Self-locking nut to spring control arm shock absorber M10 Stage 1 Nm 50 50
Stage 2 ∠° 90 90
TORQUE STRUT

Number Designation Model 211
BA35.20-P-1001-03C Self-locking nut, tension arm to rear axle carrier Aluminum M12 Stage 1 Nm 50
Stage 2 ∠° 90
Steel M14 Stage 1 Nm 80
  Stage 2 ∠° 90
BA35.20-P-1002-03C Self-locking nut, torque strut to wheel carrier Aluminum M12 Stage 1 Nm 50
  Stage 2 ∠° 90
Steel M14 Stage 1 Nm 80
  Stage 2 ∠° 90
STRUTS

Number Designation Model 211 Airmatic
BA32.25-P-1008-04B Nut, rear air spring at spring control arm Nm 150
BA32.25-P-1009-04B Air suspension pressure line at rear axle distributor unit Nm 2
Fig 3: Identifying Wrench Socket (211 589 00 09 00)
G07505676Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS diagnosis system, Compact Passenger Car 6511 1801 00
WORKSHOP EQUIPMENT

WE58.40-Z-1018-11A Transmission platform
WE58.40-Z-1030-11A Transmission jack
WE58.40-Z-1002-15A Electronic clinometer
