Empty/fill fuel tank - AR47.10-P-4001TB

MODEL 211 with ENGINE 112, 113, 156, 271, 272, 273

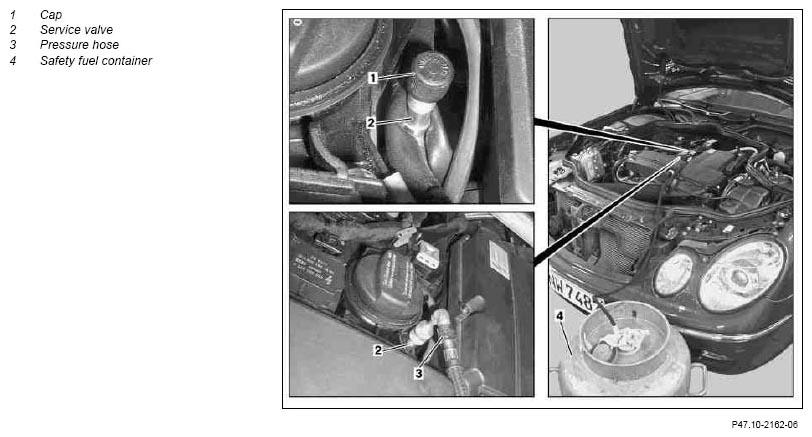

Fig 1: Identifying Cap, Service Valve, Pressure Hose And Safety Fuel Container

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Drain
	Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel and risk of injury  to eyes and skin caused by contact with fuel	No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
1	Open fuel filler flap, remove tank cap and then fit back into place again	In order to reduce overpressure in the fuel tank.
2	Remove engine trim panel
3	Unscrew cap (1) of service valve (2)
4	Mount pressure hose (3) onto service valve (2) and insert end piece into safety container (4)		Fig 2
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
5	Crank the engine and empty fuel tank	Observe filling capacity of the fuel tank to avoid overflow of the safety container (4)! The fuel tank will have excess delivered fuel removed from it by withdrawal. Pump off fuel if the fuel pump is defective: ↓ Except code 917 PZEV	AR47.10-P-4001-01PB
		With code 917 PZEV	AR47.10-P-4001-01TZV
			*BF47.10-P-1001-01A
6	Install in the reverse order
	Fill
7	Open fuel filler flap and remove filler cap
8	Pump fuel out of the safety tank (4) through the filler neck into the fuel tank	Connect ground cable to vehicle, to avoid any electrostatic charge and arcing. Observe manufacturer's operating instructions and notes.
9	Mount filler cap and close fuel filler flap
10	Remove ground cable for the Saugmaster
	Checking
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Carry out an engine test run and check fuel system for leaks	In the event of leaks determine and eliminate cause, otherwise malfunctions and serious environmental pollution may occur.

Fig 2: Identifying Pressure Hose (119 589 04 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
