Disassemble/assemble front door lining - AR72.10-P-1030T
MODEL 211.0/2/6
Replacing door lining
| Disassemble | |||
| 1 | Remove left or right door lining (1) | AR72.10-P-1000T | |
| 2 | Remove armrest (7) from left or right door lining (1) | AR72.10-P-1033T | |
| 3.1 | Remove air intake grate (2) and air exhaust grate (6) from left or right door lining (1) | On vehicles with code (581) Comfort automatic air conditioning |

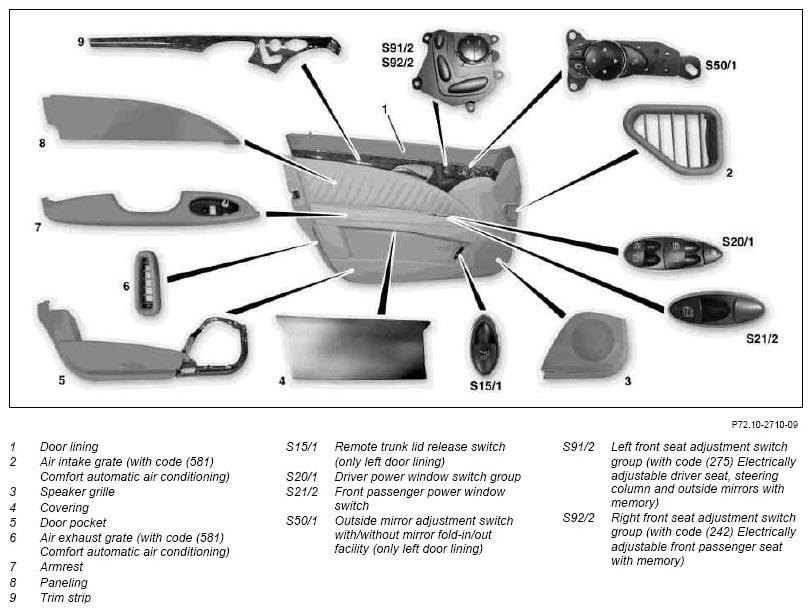

Figure |
| 4.1 | Disconnect electrical connector from outside mirror adjustment switch with/without mirror fold-in/out facility (S50/1), unscrew nuts (20) and remove outside mirror adjustment switch with/without mirror fold-in/out facility (S50/1) | Only left door lining. | |
| 5.1 | Disconnect electrical connector from left front seat adjustment switch group (S91/2) or right front seat adjustment switch group (S92/2), unscrew nuts (21) and remove left front seat adjustment switch group (S91/2) or right front seat adjustment switch group (S92/2) | On vehicles with code (275) electrically adjustable driver seat, steering column and outside mirrors with memory or Code (242) Electrically adjustable front passenger seat with memory |
|

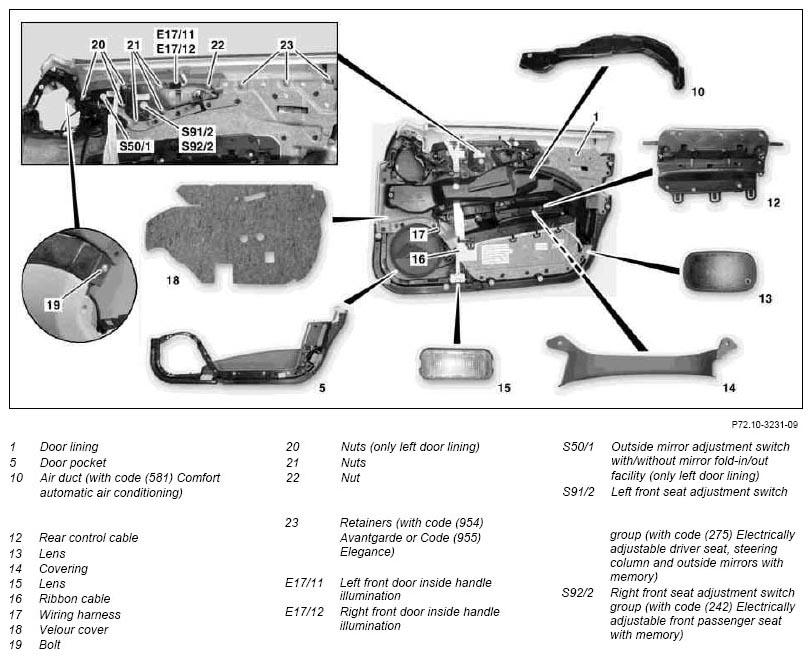

| 6 | Remove left front inner door handle illumination (E17/11) or right front inner door handle illumination (E17/12) | Figure | |
| 7 | Remove lenses (13, 15) from left or right door pocket (5) | ||
| 8 | Remove speaker grille (3) from left or right door pocket (5) | ||
| 9 | Remove ribbon cable (16) | ||
| 10.1 | Disconnect electrical connector am remote trunk lid release switch (S15/1) and remove remote trunk lid release switch (S15/1) | Only left door lining. | |
| 11 | Remove wiring harness (17) | ||
| 12 | Unscrew bolt (19) and nut (22), remove retainers (23) and remove trim strip (9) from left or right door lining (1) | ||
| Assemble | |||
| 13 | Install trim strip (9) on left or right door lining (1), screw in bolt (19) and nut (22), install retainers (23) | Replace damaged retainers (23). |
|
| 14 | Install new paneling (8) on left or right door lining (1) | AR72.10-P-1034T | |
| 15 | Install new door pocket (5) on left or right door lining (1) | AR72.10-P-1040T | |
| 16 | Install speaker grille (3) on left and right door pocket (5) | ||
| 17 | Install wiring harness (17) on left or right door lining (1) | ||
| 18 | Install ribbon cable (16) on left or right door lining (1) | ||
| 19 | Install lenses (13, 15) on left or right door pocket (5) | ||
| 20 | Install left front inner door handle illumination (E17/11) or right inner door handle illumination (E17/12) | ||
| 21.1 | Install left front seat adjustment switch group (S91/2) or right front seat adjustment switch group (S92/2). tighten nuts (21) and connect electrical connector to left front seat adjustment switch group (S91/2) or right front seat adjustment switch group (S92/2) | On vehicles with code (275) Electrically adjustable driver seat, steering column and outside mirrors with memory or Code (242) Electrically adjustable front passenger seat with memory | |
| 22.1 | Install outside mirror adjustment switch with/without mirror fold-in/out facility (S50/1), tighten nuts (20) and connect electrical connector to outside mirror adjustment switch with/without mirror fold-in/out facility (S50/1) | Only left door lining. | |
| 23.1 | Install trunk lid release switch (S15/1) and connect electrical connector | Only left door lining. | |
| 24.1 | Install air intake grate (2) and air exhaust grate (6) on left or right door lining (1) | On vehicles with code (581) Comfort automatic air conditioning | |
| 25 | Install armrest (7) on left or right door lining (1) | AR72.10-P-1033T | |
| 26 | Install left or right door lining (1) | AR72.10-P-1000T |
