Remove/install instrument panel upper section - AR68.10-P-1020T

MODEL 211.0/2/6

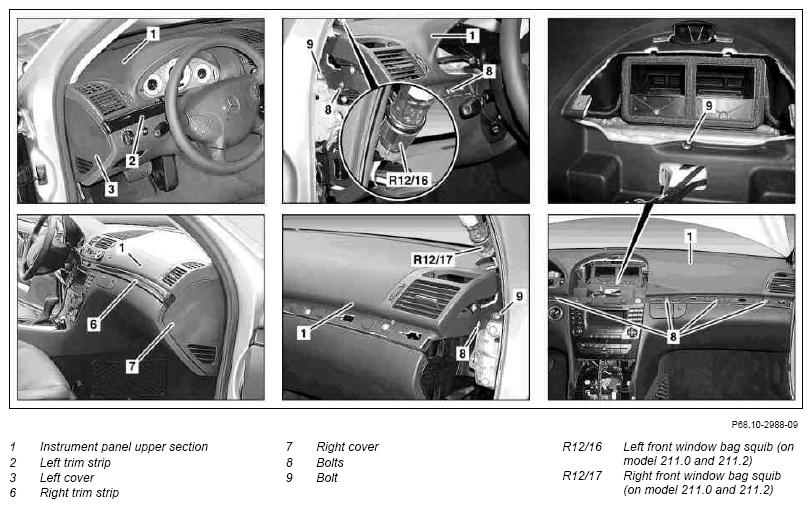

Fig 1: Identifying Instrument Panel Upper Section Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

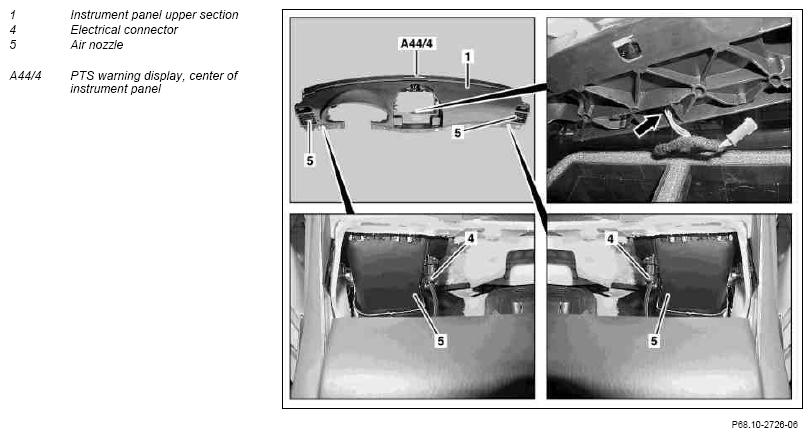

Fig 2: Identifying Instrument Panel Upper Section Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove instrument cluster		AR54.30-P-6015T
2	Remove paneling from left A-pillar		AR68.30-P-4050T
3	Unclip left cover (3) with mounting wedge		Fig 3
4	Remove left trim strip (2) from instrument panel.		AR68.10-P-1180T
5	Remove paneling on right A-pillar		AR68.30-P-4050T
6	Unclip right cover (7) with mounting wedge		Fig 3
7	Remove right trim strip from instrument panel		AR68.10-P-1180T
8	Remove front pushbutton control module		AR83.40-P-6350T
9	Remove bolts (8)
	Risk of fire and explosion caused by machining/treating magnesium components	Keep away from ignition sources and open flames.	AS60.00-Z-0006-01R
10	Remove bolts (9)	The cross member below the instrument panel into which the bolts (9) are screwed, consists of a magnesium alloy.
	Notes on processing magnesium components		AH60.00-P-0023-01R
11	Lift instrument panel upper section (1) and disconnect electrical connectors (4) from air nozzles (5)
12	With the help of a second person, detach instrument panel upper section (1) from the right side to the rear of the cross member under the instrument panel	On model 211.0 and 211.2 carefully move instrument panel bottom section (1) along right A-pillar. Otherwise the electrical connector on the right front windowbag squib (R12/17) can break. On vehicles with code (220a) Parktronic system (PTS), remove only until electrical connector (arrow) on center instrument panel PTS warning display (A44/4) is accessible.
13.1	Disconnect electrical connector (arrow) from the center instrument panel PTS warning indicator (A44/4)	On vehicles with code (220a) Parktronic system (PTS) While disconnecting the electrical connector, the instrument panel upper section (1) must be held by a second person.
14	With the help of a second person, detach instrument panel upper section (1) from the left side to the rear from the cross member under the instrument panel and remove out of the vehicle	On model 211.0 and 211.2 carefully move instrument panel bottom section (1) along left A-pillar. Otherwise the electrical connector on the left front window bag squib (R12/16) can break.
15	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
