Remove and install control and operating unit - AR83.40-P-6350T
MODEL 211.0/2/6
Front control and operating unit
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove loudspeaker in instrument panel | AR82.62-P-7833T | |
| 2 | Remove right trim strip on instrument panel | AR68.10-P-1180T | |
| 3 | Remove bolts (2) | ||

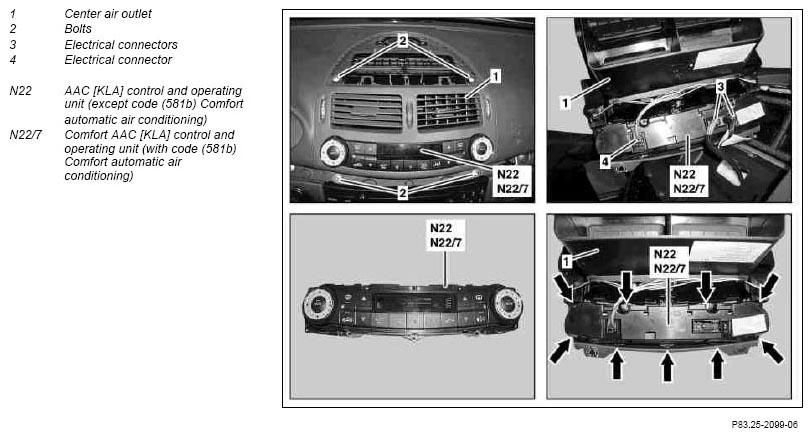

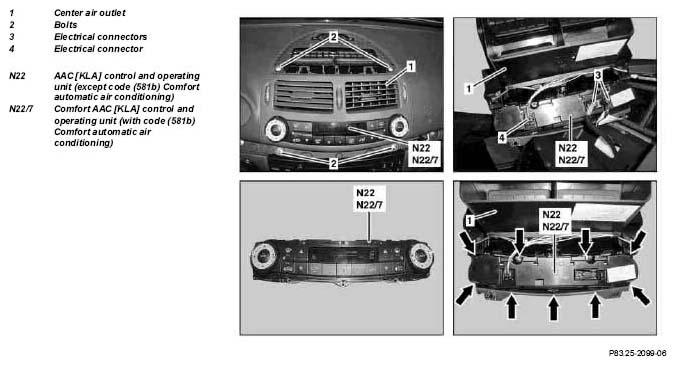

| 4 | Remove AAC [KLA] control and operating unit (N22) or comfort AAC [KLA] control and operating unit (N22/7) from instrument panel together with center air outlet (1) until electrical connectors (3, 4) are accessible | ||
| 5 | Disconnect electrical connectors (3, 4) | ||
| 6 | Unscrew bolts (arrows). | ||
| 7.1 | Remove AAC [KLA] control and operating unit (N22) or comfort AAC [KLA] control and operating unit (N22/7) from center air outlet (1) | Only when replacing AAC [KLA] control and operating unit (N22) or comfort AAC [KLA] control and operating unit (N22/7). | |
| 8 | Install in the reverse order |
