Remove/install paneling on A-pillar - AR68.30-P-4050T

MODEL 211.0/2/6

Paneling on upper A-pillar

Shown on model 211.0 with code (290) Windowbag

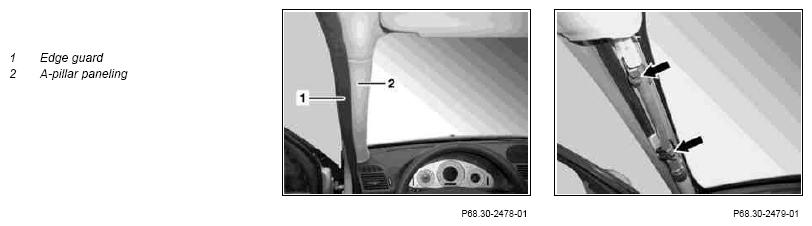

Fig 1: Identifying A-Pillar Paneling & Edge Guard

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Note on function reliability of windowbag		AH91.60-P-0693-01A
1	Remove edge guard (1) in area of A-pillar paneling (2)
2	Press A-pillar paneling (2) off of A-pillar	Move assembly wedge directly to each clip (arrows) and press off. Installation:  Check whether clips (arrows) are seated tightly.	Figure
3	Remove A-pillar paneling (2) out of instrument panel guide upward
4	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
