Speed-sensitive power steering at vehicle speeds >100 km/h when steering, function - GF46.50-P-2700A
MODEL 171.4, 203 with CODE (213) Speed-sensitive power steering up to Model Year 8
MODEL 209, 211 with CODE (213) Speed-sensitive power steering
MODEL 215, 220
MODEL 230 up to Model Year 8

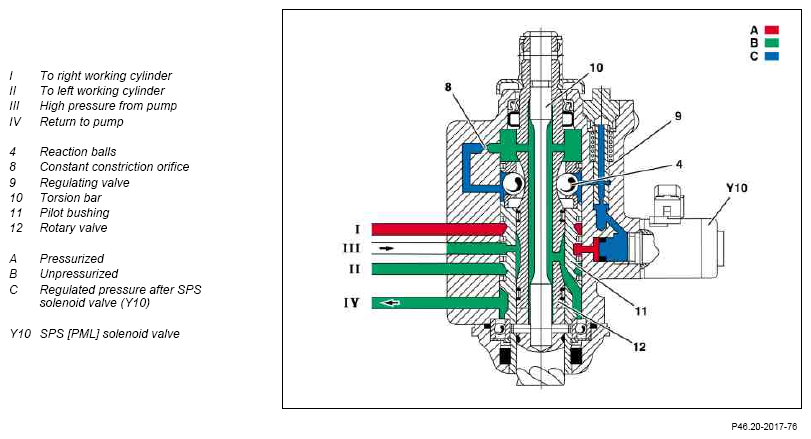

Rotary valve and control bush housing for models 215 and 220 illustrated Steering left
Vehicle speed v > 100 km/h
The SPS [PML] solenoid valve (Y10) is energized to the minimum extent. This causes the maximum possible pressure from the SPS solenoid valve (Y10) to be directed via the control spool (9) onto the reaction balls (4), increasing the pressure acting on the v-shaped surfaces of the rotary slide (12) to the maximum.
The constant constriction orifice (8) reduces the regulated pressure from the SPS solenoid valve (Y10). This is then passed on as an almost depressurized backflow to the power steering pump reservoir.
| Power steering pump, location / task / design / function | Type 171.4 | GF46.30-P-2100SK |
| Model 203 | GF46.30-P-2100P | |
| Model 209 | GF46.30-P-2100Q | |
| Model 211 | GF46.30-P-2100T | |
| Model 220 except Code (487a) Active Body Control (ABC) | GF46.30-P-2100B | |
| Model 230 except Code (487a) Active Body Control (ABC) | GF46.30-P-2100R | |
| Tandem pump, location/task/design/function | Model 215 Models 220, 230 with Code (487a) Active Body Control (ABC) |
GF46.30-P-3300A |
| Rack-and-pinion steering gear, location / task / design / function | Model 171.4, 203, 209 | GF46.20-P-1000PA |
| Model 211 | GF46.20-P-1000TA | |
| Models 215, 220, 230 | GF46.20-P-1000B | |
| SPS solenoid valve, location / task / design / function | GF46.50-P-5000B | |
| Rack-and-pinion steering play compensator, location / task / function | Model 171.4, 203, 209 | GF46.20-P-1100P |
| Model 211 | GF46.20-P-1100T | |
| Models 215, 220, 230 | GF46.20-P-1100B | |
| Rack-and-pinion steering damper, location / task / function | Model 171.4, 203, 209 | GF46.20-P-1200P |
| Model 211 | GF46.20-P-1200T | |
| Models 215, 220, 230 | GF46.20-P-1200B |
