Rack-and-pinion steering gear, location/task/design/function - GF46.20-P-1000TA

MODEL 211 with CODE (213a) Speed-sensitive power steering

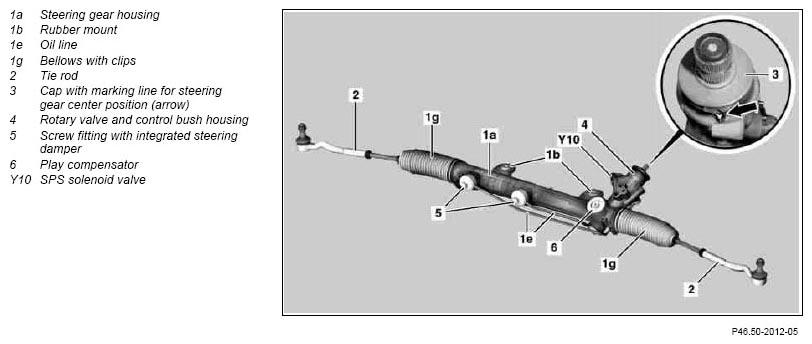

Fig 1: Identifying Rack-And-Pinion Steering Gear Components
G07285575Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Rack-and-pinion steering gear, location   GF46.20-P-1000-02T
Rack-and-pinion steering gear, task Transmits the steering movements from the steering wheel to the road wheels. Assists the manual steering force, thus making it easier to steer the vehicle.
Rack-and-pinion steering gear, design An automatic play compensator, the steering dampers and the tie rods are integrated in the steering gear of the rack-and-pinion steering.
Rack-and-pinion steering gear, function   GF46.20-P-1000-01T
