Rack-and-pinion steering damper, location/task/function - GF46.20-P-1200T

MODEL 211

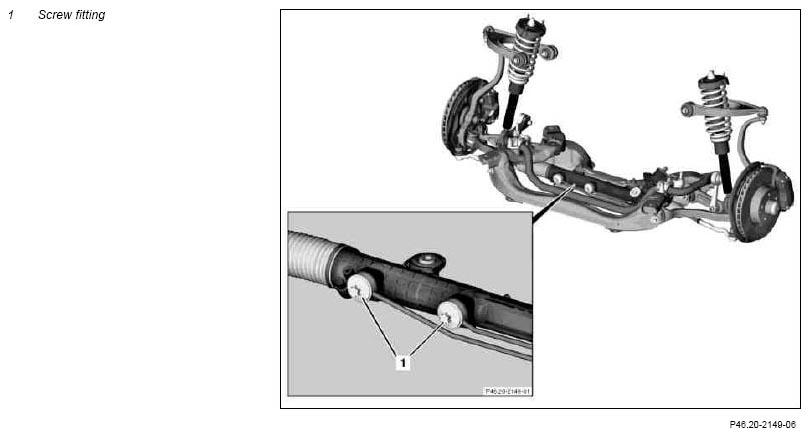

Fig 1: Identifying Screw Fitting

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Rack-and-pinion steering damper, location	One steering damper is integrated in each screw fitting (1).
Rack-and-pinion steering damper, task	The task of the integrated steering dampers is to cushion the forces and shocks transmitted from the road surface via the steering linkage.
Rack-and-pinion steering damper, function		GF46.20-P-1200-02T
