SPS solenoid valve, location / task / design / function - GF46.50-P-5000B
MODEL 171.4, 203 with CODE (213) Speed-sensitive power steering up to Model Year 8
MODEL 209, 211 with CODE (213) Speed-sensitive power steering
MODEL 215, 220
MODEL 230 up to Model Year 8
Shows model 220

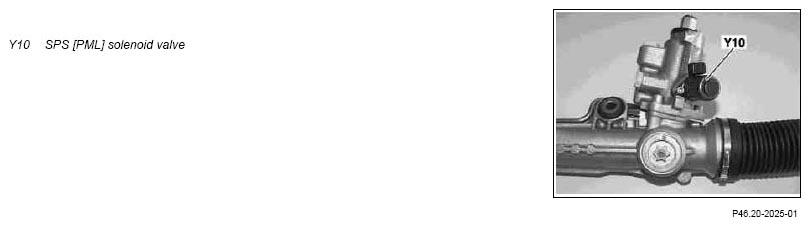

| SPS solenoid valve, location | GF46.50-P-5000-02B | |
| SPS solenoid valve, task | Control of steering wheel moment in the vehicle speed range of v = 0 km/h to v = 100 km/h. | |
| SPS solenoid valve, design | Current-controlled proportional valve. | |
| SPS solenoid valve, function | Type 171.4 | GF46.50-P-5000-01SK |
| Model 203.0 up to 31.07.01 | GF46.50-P-5000-01P | |
| Model 203.0 as of 01.08.01 | GF46.50-P-5000-01B | |
| Model 203.2, 203.7 | GF46.50-P-9990P | |
| Model 209, 211, 215, 220, 230 |
