Replace spark plugs - AP15.10-P-1580P
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 271.921 /940 /942 /946 /948 /955
ENGINE 271.941 /956 in MODEL 211
MODIFICATION NOTES
| 21.4.04 | Value changed from 25 Nm to 28 Nm | Value in series 1001 modified on engine 271 | *BA15.10-P-1001-01C |
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system | AS15.10-Z-0001-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage to ignition system | AH15.10-P-0002-01D | ||

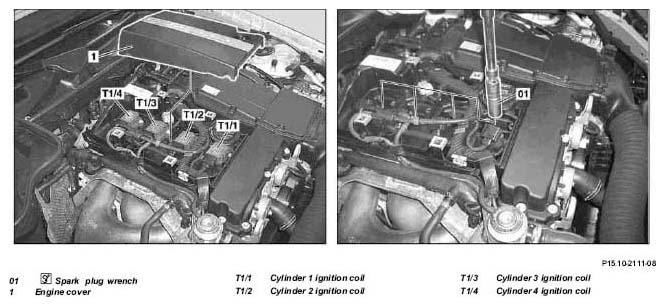

| 1 | Remove ignition coils of cylinders 1 to 4 (T1/1 to T1/4) | ||
| Remove/install ignition coils | AR15.12-P-2003T | ||
| 2 | Replace ignition coil connector | AP15.10-P-1580-01P | |
| 3 | Unscrew spark plugs from cylinder head with |
Figure | |
| *BA15.10-P-1001-01C | |||
| 4 | Install in the reverse order |
| Number | Designation | Engine 271 | |
|---|---|---|---|
| BA15.10-P-1001-01C | Spark plug on cylinder head | Nm | 28 |
