Remove/install ignition coils - AR15.12-P-2003T

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 271.941 in MODEL 211.042 /242

ENGINE 271.942 in MODEL 203.043 /243 /743, 209.343

ENGINE 271.940 in MODEL 203.042 /242 /742, 209.442 /342

ENGINE 271.946 in MODEL 203.046 /246 /746

ENGINE 271.948 in MODEL 203.040 /240 /740

ENGINE 271.921 in MODEL 203.730

ENGINE 271.955 in MODEL 209.341 /441

ENGINE 271.956 in MODEL 211.041 /241

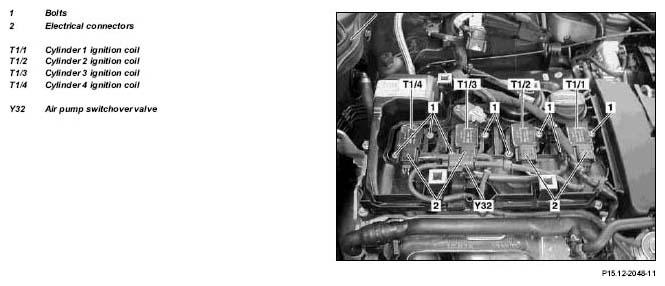

Fig 1: Identifying Ignition Coils Remove/Install Components - Engine 271.948

MODIFICATION NOTES

20.2.04

Disconnect/connect ground line on battery

	Remove/Install
	Risk of death caused by contact with parts conducting high voltages.	Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) must not carry work out on the ignition system	AS15.10-Z-0001-01A
1.1	Remove Keyless Go transmitter (card, ignition key) from the vehicle and keep outside the range of the transmitter.	Vehicles with Keyless Go Code 889 Switch off engine.
1.2	Switch off ignition, detach transmitter key from electronic ignition switch control unit	Vehicles without Keyless Go
2	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
3	Remove engine trim panel	Grasp engine cover with both hands and pry off.
4	Remove the air pump switchover valve (Y32) from the bracket and place it to the side
5	Detach the electrical connectors (2) of the ignition coils of cylinders 1 to 4 (T1/1 to T1/4)		AH15.10-P-0002-01D
	Notes on avoiding damage to ignition system
6	Unscrew bolts (1) of the ignition coils of cylinders 1 to 4 (T1/1 to T1/4)		*BA15.12-P-1002-01F
7	Remove the ignition coils of cylinders 1 to 4 (T1/1 to T1/4) with the connectors
8	Check the connectors of the ignition coils of cylinders 1 to 4 (T1/1 to T1/4)	If damaged, replace the relevant connector:↓	AR15.12-P-2003-01P
		Replace ignition coil connector	AP15.10-P-1580-01P
9	Install in the reverse order

ECI IGNITION SYSTEM

Number	Designation		Engine 271
BA15.12-P-1002-01F	Ignition coil to cylinder head cover	Nm	8
