Set basic position of camshafts - AR05.20-P-6020QK

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 271.940 in MODELS 203.042 /242 /742, 209.342 /442

ENGINE 271.941 in MODELS 211.042 /242

ENGINE 271.946 in MODELS 203.046 /246 /746

ENGINE 271.948 in MODELS 203.040 /240 /740

ENGINE 271.942 in MODELS 203.043 /243 /743, 209.343

ENGINE 271.921 in MODEL 203.730

ENGINE 271.955 in MODELS 209.341 /441

ENGINE 271.956 in MODELS 211.041 /241

Shown on engine 271.940

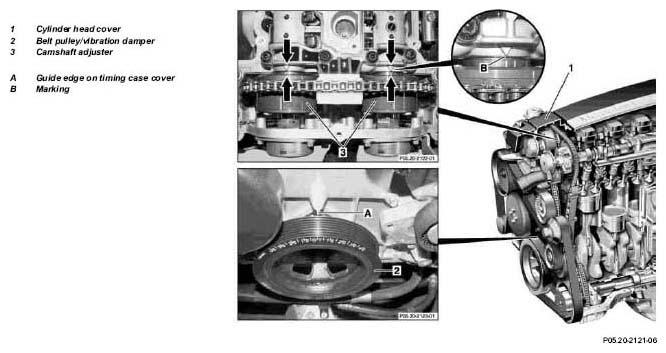

Fig 1: Setting Basic Position Of Camshafts - Shown On Engine 271.940 (1 Of 3)

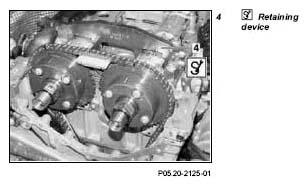

Fig 2: Setting Basic Position Of Camshafts - Shown On Engine 271.940 (2 Of 3)

Fig 3: Setting Basic Position Of Camshafts - Shown On Engine 271.940 (3 Of 3)

Modification notes

18.4.05

The timing chain must not be removed from the intake camshaft. The timing chain is slackened only

Step 5

	Removing
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
2	Remove cylinder head cover (1)	Model 203, 209	AR01.20-P-5014QK
		Model 211	AR01.20-P-5014TK
3	Remove front cover at cylinder head		AR01.30-P-5700QK
4	Spin engine at the crankshaft in direction of rotation until the piston of cylinder 1 is positioned at TDC marking ± 2°	The TDC marking on belt pulley/vibration damper (2) must be aligned with the positioning edge (A) on timing case cover. The cams of the inlet and exhaust camshaft at cylinder 1 must be positioned upright at an angle (arrows, picture 2).
5	Release timing chain		AR05.10-P-7605-01TK
			Fig 6
6	Remove camshaft adjuster (3)	Secure against falling.	AR05.20-P-7201QK
7	Mount retainer (4)	At the same time the camshafts are attached in basic position.
			Fig 5
	Install
8	Install camshaft adjuster (3)	The markings on camshaft adjusters (3) must be aligned with markings (B) at camshaft bearing housing (arrows, picture 1). The TDC marking on belt pulley/vibration damper (2) must be aligned with positioning edge (A) on timing case cover. The camshaft adjusters (3) require no particular adjustment, as they automatically take on a basic position to the camshafts when engine is vertical.	AR05.20-P-7201QK
9	Clamp timing chain	For this step Take wedge out of timing case and slacken tensioning rail.	AR05.10-P-7605-01TK
			Fig 6
10	Dismount retainer (4)		Fig 5
11	Rotate crankshaft by two revolutions in direction of rotation of engine and once again check basic position of camshafts	The markings on the camshaft adjusters (3) must be aligned with the markings (B) at the camshaft bearing housing (arrows, picture 1). The TDC marking on belt pulley/vibration damper (2) must be aligned with positioning edge (A) on timing case cover.
12	Install front cover at cylinder head		AR01.30-P-5700QK
13	Install cylinder head cover (1)	Models 203, 309	AR01.20-P-5014QK
		Model 211	AR01.20-P-5014TK
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
14	Check for leaks with engine running
15	Close engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T

Fig 4: Identifying Wedge (271 589 00 31 00)

Fig 5: Identifying Retainer (271 589 00 61 00)

Fig 6: Identifying Wedge (271 589 00 31 00)
