Remove, install cylinder head cover - AR01.20-P-5014QK

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 271.940 in MODELS 203.042 /242 /742, 209.342 /442

ENGINE 271.946 in MODELS 203.046 /246 /746

ENGINE 271.948 in MODELS 203.040 /240 /740

ENGINE 271.942 in MODELS 203.043 /243 /743, 209.343

ENGINE 271.921 in MODEL 203.730

ENGINE 271.955 in MODELS 209.341 /441

Shown on engine 271.940

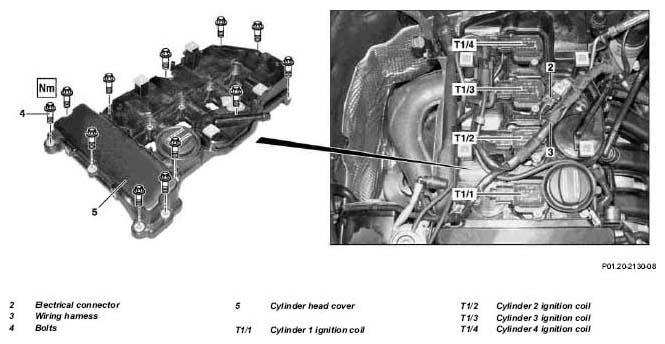

Fig 1: Identifying Cylinder Head Cover Remove/Install Components - Shown On Engine 271.940
G04731340
MODIFICATION NOTES

1.3.04 Disconnect/connect ground line on battery
REMOVINGINSTALLING Remove/install
1 Open engine hood Model 203 AR88.40-P-1000P
    Model 209 AR88.40-P-1000Q
2 Remove cover of cylinder head IMPORTANT Grasp with both hands and pry off. Check gasket, replace if necessary.
3 Remove ignition coils of cylinders 1 to 4 (T1/1 to T1/4)   AR15.12-P-2003T
4 Detach vent lines from cylinder head cover (5) INSPECT Inspect vent lines, replace if necessary.
5 Detach electrical connector (2) for left intake camshaft Hall sensor
6 Place electrical wiring harness (3) for ignition coil for cylinders 1 to 4 (T1/1 to T1/4) to the side IMPORTANTInstallation:  Ensure that electric wiring harness (3) is correctly routed in cylinder head cover (5).
    Ensure that rubber seal for electric wiring harness (3) is correctly seated in cylinder head cover (.5)
7 Remove bolts (4) IMPORTANTInstallation:  Observe tightening procedure:
    Tightening diagram for cylinder head cover AR01.20-P-5014-03Q
    TORQUE SPECIFICATION *BA01.20-P-1001-01B
8 Remove cylinder head cover (5) IMPORTANTInstallation:  Install new gasket Ensure gasket of cylinder head cover (5) is correctly installed.
9 Install in the reverse order
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the running engine Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not grasp hot or rotating parts.		 AS00.00-Z-0005-01A
10 Check for leaks with engine running
TORQUE SPECIFICATION CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number Designation Engine 271
BA01.20-P-1001-01B Cylinder head cover bolt Nm 9
