Release the timing chain - AR05.10-P-7605-01TK

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Wedge (271 589 00 31 00)

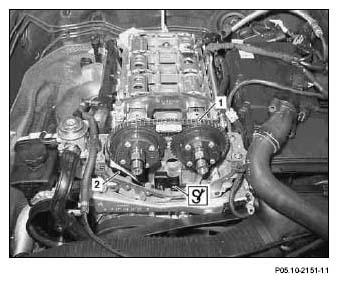

Release the timing chain (1). To do this, insert the wedge in the timing case and push back the tensioning rail (2).

Fig 2: Identifying Timing Chain And Tensioning Rail
