Remove/install camshafts - AR05.20-P-7201QK

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 271.940 in MODELS 203.042 /242 /742, 209.342 /442

ENGINE 271.941 in MODELS 211.042 /242

ENGINE 271.946 in MODELS 203.046 /246 /746

ENGINE 271.948 in MODELS 203.040 /240 /740

ENGINE 271.921 in MODEL 203.730

ENGINE 271.942 in MODELS 203.043 /243 /743, 209.343

ENGINE 271.955 in MODELS 209.341 /441

ENGINE 271.956 in MODELS 211.041 /241

Shown on engine 271.940

Fig 1: Identifying Camshaft Remove/Install Components - Shown On Engine 271.940

Modification notes

16.4.03

Change in the repair method, to release the timing chain, the chain tensioner is no longer removed, instead the slide rail in the cylinder head is pushed back

Step 5

	Remove/install
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
2	Remove cylinder head cover	Model 203, 209	AR01.20-P-5014QK
		Model 211	AR01.20-P-5014TK
3	Remove front cover at cylinder head		AR01.30-P-5700QK
4	Rotate the engine at the crankshaft in the direction of rotation.	Until the piston of cylinder 1 is at TDC marking ±2° crankshaft angle. The TDC marking on the belt pulley/vibration damper must be aligned with the positioning edge on the timing case cover. The cams of the inlet camshaft and the exhaust camshaft at cylinder 1 must be positioned up at an angle.
		See "Inspect basic position of camshafts".	AR05.20-P-6010QK
5	Mount retainer (2)	Install retainer (2) above recesses on top camshaft case.
			Figure
6	Release timing chain		AR05.10-P-7605-01TK

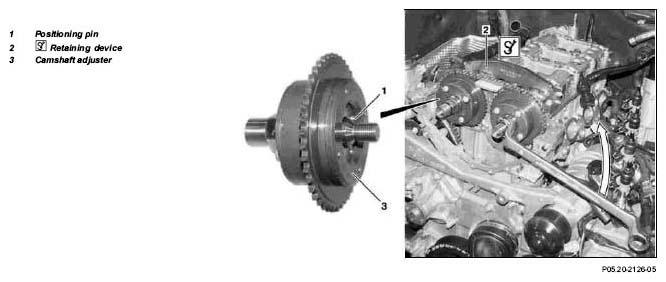

7	Unscrew center bolt and remove camshaft adjusters (3) from respective camshaft	At the same time unhinge timing chain and secure against falling down. The intake and the exhaust camshaft is slackened in the same direction (arrow). Installation: The camshaft adjusters (3) do not require any particular adjustment as they feature a positioning pin (1). To avoid confusion, the camshaft adjusters (3) are marked with "A" for exhaust camshaft and with "E" for intake camshaft.
			*BA05.20-P-1002-02A
			Figure
8	Install in the reverse order

Camshaft, camshaft adjustment

Number	Designation			Engine 271
BA05.20-P-1002-02A	Center screw for camshaft adjuster at camshaft	Stage 1	Nm	90
BA05.20-P-1002-02A	Center screw for camshaft adjuster at camshaft	Stage 2	∠ °	-

Fig 2: Identifying Retainer (271 589 00 61 00)

Fig 3: Identifying Wrench Socket (001 589 65 09 00)
