Check basic position of camshafts - AR05.20-P-6010QK

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 271.940 in MODEL 203.042 /242 /742, 209.342 /442

ENGINE 271.941 in MODEL 211.042 /242

ENGINE 271.946 in MODEL 203.046 /246 /746

ENGINE 271.948 in MODEL 203.040 /240 /740

ENGINE 271.942 in MODEL 203.043 /243 /743, 209.343

ENGINE 271.921 in MODEL 203.730

ENGINE 271.955 in MODEL 209.341 /441

ENGINE 271.956 in MODEL 211.041 /241

Shown on ENGINE 271.940

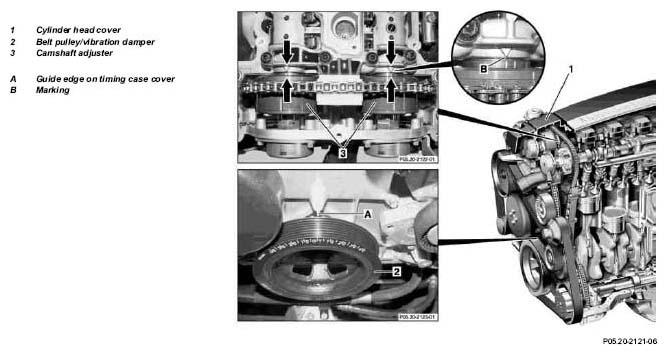

Fig 1: Checking Basic Position Of Camshafts - Shown On Engine 271.940

	Remove/Install
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
2	Remove cylinder head cover (1)	Model 203, 209	AR01.20-P-5014QK
		Model 211	AR01.20-P-5014TK
	Check
3	Spin engine at the crankshaft in direction of rotation until the piston of cylinder 1 is positioned at TDC marking ± 2°	The TDC marking on belt pulley/vibration damper (2) must be aligned with the positioning edge (A) on the timing case cover. The cams of the inlet camshaft and the exhaust camshaft at cylinder 1 must be positioned up at an angle.
4	Check basic position of camshafts	If incorrectly installed (chain offset by 1 tooth), the value is altered by about 20° crank angle. If the basic position is not correct↓.
		Set the basic position of camshafts. The markings on the camshaft adjusters (3) must be aligned with the markings (B) at the camshaft bearing housing (arrows). The camshaft adjusters (3) require no particular adjustment, as they automatically take on a basic position to the camshafts when engine is vertical.	AR05.20-P-6020QK
5	Install in the reverse order
