Remove/install camshaft housing - AR05.20-P-6995QK

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 271.940 in MODELS 203.042 /242 /742, 209.342 /442

ENGINE 271.941 in MODELS 211.042 /242

ENGINE 271.946 in MODELS 203.046 /246 /746

ENGINE 271.948 in MODELS 203.040 /240 /740

ENGINE 271.942 in MODELS 203.043 /243 /743, 209.343

ENGINE 271.921 in MODEL 203.730

ENGINE 271.955 in MODELS 209.341 /441

ENGINE 271.956 in MODELS 211.041 /241

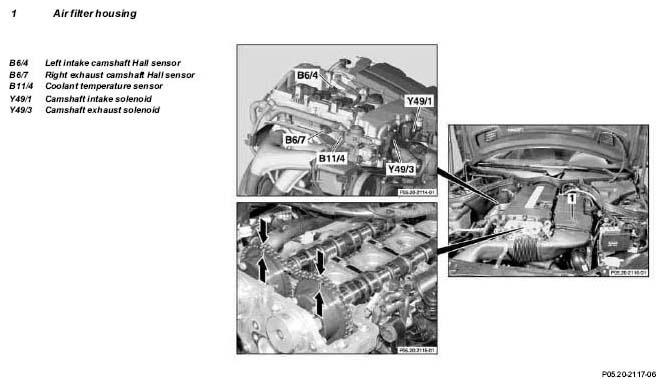

Fig 1: Identifying Camshaft Housing Remove/Install Components (1 Of 2)

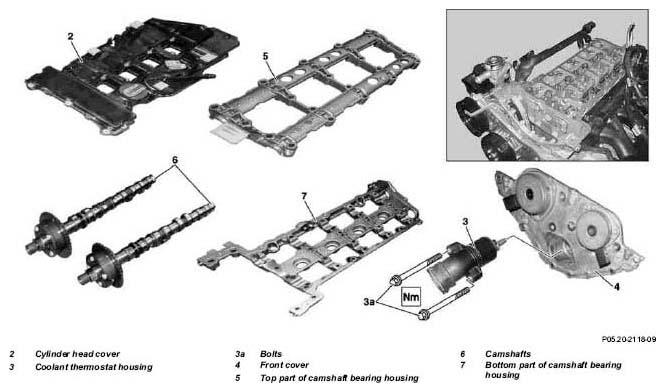

Fig 2: Identifying Camshaft Housing Remove/Install Components (2 Of 2)

Modification notes

16.4.03

Change in the repair method, to release the timing chain, the chain tensioner is no longer removed, instead the slide rail in the cylinder head is pushed back

Step 9 revised

	Remove/install
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
		Model 211	AR88.40-P-1000T
2	Remove air filter housing (1).		AR09.10-P-1150Q
3	Remove engine-side engine wiring harness	For this, detach the plugs of the following components: left intake camshaft Hall sensor (B6/4), right exhaust camshaft Hall sensor (B6/7), coolant temperature sensor (B11/4), camshaft exhaust solenoid (Y49/3), camshaft intake solenoid (Y49/1).
4	Remove cylinder head cover (2)	Model 203, 209	AR01.20-P-5014QK
		Model 211	AR01.20-P-5014TK
5	Spin engine at crankshaft in direction of rotation until piston of cylinder 1 is positioned at	The cams of the exhaust camshaft and of the inlet camshaft at cylinder 1 must be pointing up at an angle.
6	Mark position of camshafts (6)	Mark the position of the camshaft drive gears and the position of the timing chain with a line (see arrows).
		For a new assembly set up basic position for camshafts.	AR05.20-P-6020QK
7	Remove guide pulley of poly V-belt		*BA01.40-P-1001-01K
8	Remove coolant thermostat housing (3)		*BA01.30-P-1009-01J
9	Remove front cover (4) at cylinder head		AR01.30-P-5700QK
10	Release timing chain		AR05.10-P-7605-01TK
11	Remove top part of camshaft bearing housing (5)		*BA01.30-P-1003-01J
		Installation: Pay attention to tightening pattern of camshaft case	AR05.20-P-6995-01QK
12	Remove camshafts (6)	At the same time unhinge timing chain and secure against falling down.	AR05.20-P-6992QK
13	Remove left exhaust camshaft Hall sensor (B6/7)
14	Loosen shield of exhaust manifold	Only unscrew mounting screw at shield.
15	Remove bottom part of camshaft bearing housing (7)	Heat sealing compound with a hot air gun and then carefully pry off bottom part of camshaft bearing housing (7).
		Installation: Clean sealing surfaces and apply fresh sealant.	*BR00.45-Z-1013-01A
			*BA01.30-P-1004-01J
	Notice for sealing compound blend of camshaft bearing housing subdivision (7)		AH05.20-P-6995-01QK
			*WH58.30-Z-1004-20A
16	Install in the reverse order

Cylinder head

Number	Designation				Engine 271
BA01.30-P-1003-01J	Bolt, upper part of camshaft bearing housing to cylinder head	M7	Stage 1	Nm	10
BA01.30-P-1003-01J		M7	Stage 2	∠ °	90
BA01.30-P-1004-01J	Bolt, lower part of camshaft bearing housing to cylinder head		M7	Nm	14
BA01.30-P-1009-01J	Bolt, thermostat housing to cylinder head		M6	Nm	9

Crankcase, timing case cover, end cover

Number	Designation		Engine 271
BA01.40-P-1001-01K	Bolt, guide pulley to timing case	Nm	20

Commercially available tools

Number	Designation
WH58.30-Z-1004-20A	Hot-air gun

Repair materials

Number	Designation	Order number
BR00.45-Z-1013-01A	Sealant	A 003 989 98 20
