Remove/install headliner - AR68.30-P-4300SXS

MODEL 221.1 with CODE (Z07) Top protection

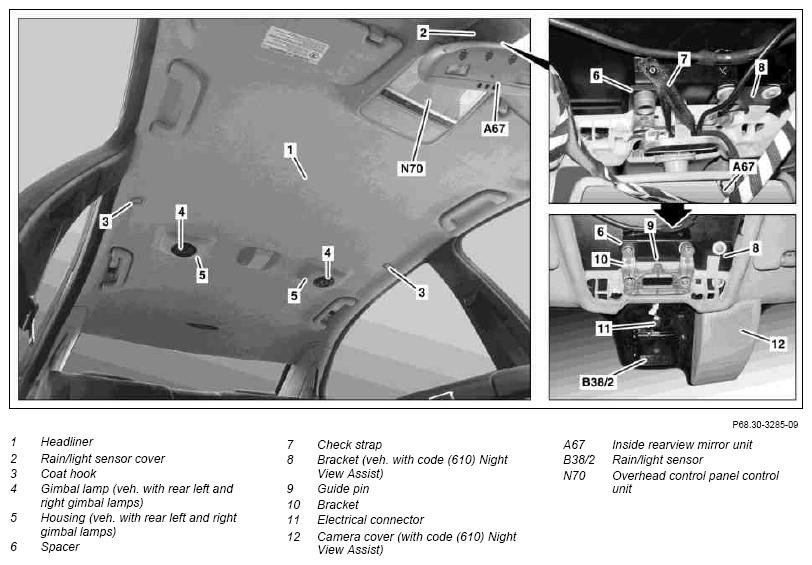

Fig 1: Identifying Headliner Components

Courtesy of MERCEDES-BENZ USA

Shown with code (610) Night View Assist and rear left and right gimbal lamps

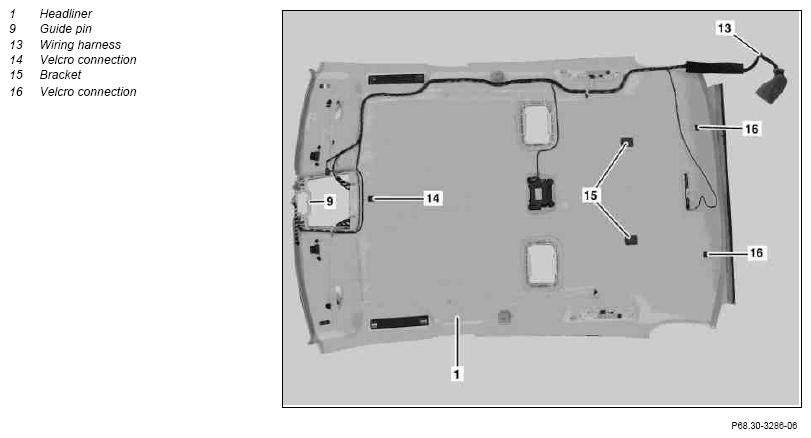

Fig 2: Identifying Rain/Light Sensor Cover, Overhead Control Panel Control Unit, Strap And Rear View Mirror Unit

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on avoiding damage to windows installed in special protection vehicles		AH67.00-P-0003-01FB
1.1	Remove Night View Assist camera.	On vehicles with code (610) Night View Assist	AR54.30-P-3000SX
2	Remove rain/light sensor cover (2)
3	Remove both sun visors with counterbearings
4	Remove overhead control panel control unit (N70)		AR82.20-P-1000SXS
5	Detach check strap (7) of inside rearview mirror unit (A67)
6	Remove inside rearview mirror unit (A67)
7	Remove bracket (10) of inside rearview mirror unit (A67)
8	Remove spacer (6)	On vehicles without code (610) Night View Assist, a spacer (6) is installed on the left and right.
9	Remove plastic washer of bracket (8)	On vehicles with code (610) Night View Assist Installation:  Since the bracket (8) for the Night View Assist camera must not have an electrical contact to the body, plastic washers must be installed to insulate the bracket (8).
10	Disconnect electrical connector (11) from rain/light sensor (B38/2)
11	Remove trim from left and right A-pillar
12	Remove all grab handles from roof	Installation:  Apply thread locking compound to grab handle screws when reinstalling.
		Thread locking compound Loctite 270	*BR00.45-Z-1008-02A
13	Remove both coat hooks (3).
14.1	Open left or right vanity mirror, unclip lens for left rear vanity mirror illumination or for right rear vanity mirror illumination using a suitable tool, remove screw beneath, unclip housing and disconnect electrical connector	On vehicles without rear left and right gimbal lamps (4).
14.2	Unclip left and right gimbal lamps (4) from housing (5) using a suitable tool, remove screw beneath, unclip housing (5) and disconnect electrical connector	On vehicles with rear left and right gimbal lamps (4).
15	Remove trim from top of left and right C-pillars		AR68.30-P-4490SXS
16	Expose and disconnect electrical wiring harness (13) of headliner (1)	Installation:  Observe routing and attachment of electric wiring harness (13).
17	Switch on ignition, adjust left front seat all the way to the front and all the way down; tilt seat backrest all the way back	After adjusting left front seat, switch ignition back off.
18	Remove right front seat		AR91.10-P-1000SX
19	Remove top and bottom trim from right B-pillar	Do not remove seat belt guide bracket.	AR68.30-P-4700SX
20	Remove edge guard from all door cutouts in area of headliner (1)
21	Detach headliner (1) from roof, push toward front and then remove through right rear door	Remove headliner (1) carefully to avoid damage to the interior and the plastic coating on the inside of the windows. Aid of helper required.
22	Install in the reverse order
23	Read out fault memory, erase if necessary
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
