Replace the oil pump chain - AR18.10-P-2140OM: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 642
| Removing | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove oil pump | Model 164, 251 | AR18.10-P-6020GZB |
| Model 203, 209 | AR18.10-P-6020PI | ||
| Model 204 | AR18.10-P-6020CO | ||
| Models 207, 212, 221 | AR18.10-P-6020SXI | ||
| Model 211 | AR18.10-P-6020TI | ||
| Type 219.322 | AR18.10-P-6020TQ | ||

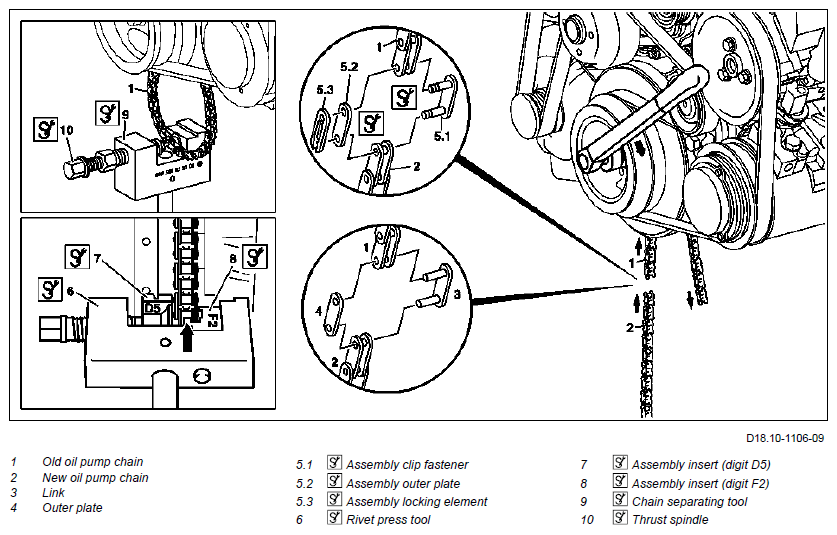

| 2 | Disconnect old pump chain (1) | AR18.10-P-2140-01OM | |
| Fig 2 | |||
| Fig 4 | |||
| Fig 3 | |||
| Fig 5 | |||
| Install | |||
| 3 | Draw in new oil pump chain (2) and rivet | AR18.10-P-2140-02OM | |
| Fig 2 | |||
| Fig 8 | |||
| Fig 7 | |||
| Fig 6 | |||
| 4 | Install oil pump | Model 164, 251 | AR18.10-P-6020GZB |
| Model 203, 209 | AR18.10-P-6020PI | ||
| Model 204 | AR18.10-P-6020CO | ||
| Models 207, 212, 221 | AR18.10-P-6020SXI | ||
| Model 211 | AR18.10-P-6020TI | ||
| Type 219.322 | AR18.10-P-6020TQ |
