Remove/install oil pump - AR18.10-P-6020GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 164

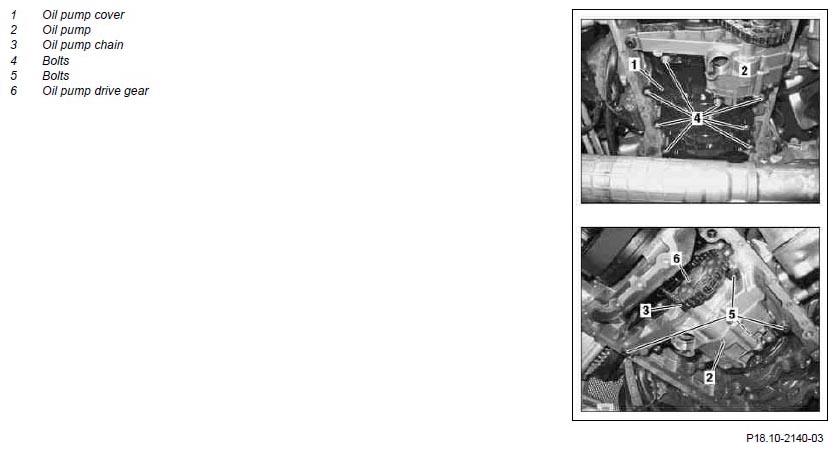

Fig 1: Identifying Oil Pump Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the vehicle lift	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove oil pan	Model 164	AR01.45-P-7500GZB
		Model 251 with 4MATIC	AR01.45-P-7500RTB
		Model 251 without 4MATIC	AR01.45-P-7500RTC
2	Remove bolts (4) on oil pump cover (1)		*BA18.10-P-1002-01K
3	Remove oil pump (2) from crankcase	To do this, remove bolts (5). There is a bolt on rear side of oil pump (2).
			*BA18.10-P-1001-01K
			*BA18.10-P-1003-01K
4	Take off oil pump (2)	Press off tensioning rail from the oil pump chain (3); unhook oil pump chain (3) from the oil pump drive gear (6). Installation: Clean the strainer of the oil pump and replace sealing ring. If oil pump (2) is dry, fill it with engine oil so that oil is delivered when engine is started.
5	Install in the reverse order

Oil pump

OIL PUMP

Number	Designation		Engine 642
BA18.10-P-1001-01K	Bolt, oil pump	Nm	19
BA18.10-P-1002-01K	Bolt, oil pump cap with oil pipe to oil pump	Nm	12
BA18.10-P-1003-01K	Bracket to oil pump	Nm	9
