Remove/install exhaust gas recirculation cooler - AR14.20-P-7665GZB
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642 in MODEL 164, 251
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove charge air manifold | AR09.41-P-1310GZB | |
| 2 | Unclip engine inlet port shutoff | AR09.20-P-1314GZB | |
| 3 | Disconnect charge air manifold | ||
| 4 | Remove bolt (2) | *BA14.20-P-1001-01G | |

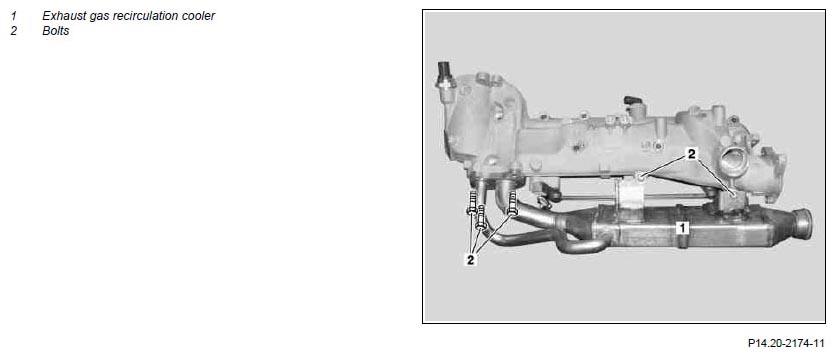

| 5 | Remove exhaust gas recirculation cooler (1) | ||
| 6 | Install in the reverse order |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 642.82/83/85/86/87/9 | ||
|---|---|---|---|---|
| BA14.20-P-1001-01G | Bolt, exhaust gas recirculation cooler to charge air manifold | M6X15 | Nm | 12 |
| M6X20 | Nm | 10 | ||
