Remove/install inlet port shutoff - AR09.20-P-1314GZB

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 164, 251

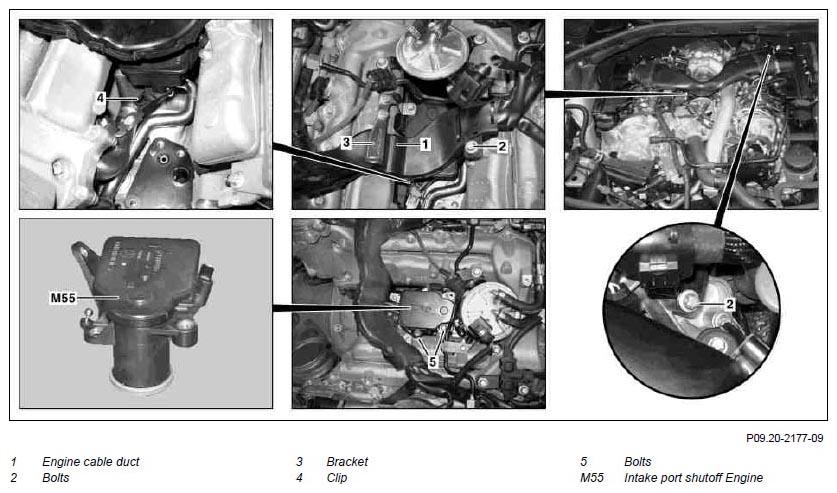

Fig 1: Identifying Inlet Port Shutoff Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

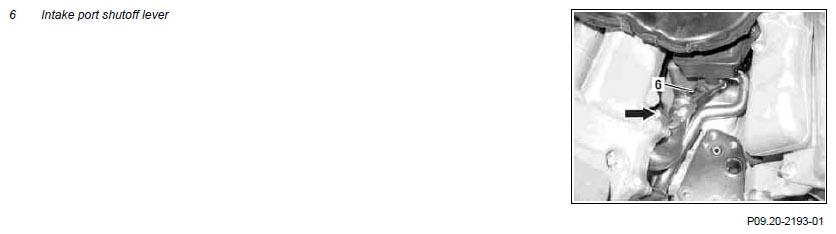

Fig 2: Identifying Inlet Port Shutoff Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, lift gates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1.1	Removes strut tower brace	Model 164.8 only Remove strut tower brace from strut tower mounts.	AR62.30-P-2500GY
1.2	Remove partition wall between wheel wells	Model 251 only	AR62.30-P-2400RT
2	Remove engine trim panel	Model 164	AR01.10-P-2405GZB
2	Remove engine trim panel	Model 251	AR01.10-P-2405RTB
3	Detach bracket (3)	If installed.
4	Remove turbocharger	Model 164	AR09.40-P-6020GZB
4	Remove turbocharger	Model 251	AR09.40-P-6020RTB
5	Remove oil supply connection fittings for turbocharger		AR09.40-P-6023GZB
6	Loosen engine cable duct (1)	Remove bolts (2) and place engine cable duct (1) to one side.
7	Detach electrical connector at the intake port shutoff Engine (M55)
8	Unclip engine intake port shutoff (M55)	Unlatch clip (4), turn linkage and unlatch second clip.
9	Remove bolts (5)
10	Take out inlet port shutoff Engine (M55)
	Install
11	Install engine intake port shutoff (M55)
12	Clip in inlet port shutoff lever (M55)	Clips must not be reused and new clips must be fitted.
13	Fully tighten bolts (5)	Install inlet port shutoff Engine (M55) without tension and pay attention to the correct adjustment of the linkage.
14	Connect up electrical connector from intake port shutoff Engine (M55)
15	Secure engine cable duct (1)	Screw in bolts (2).
16	Install oil supply connection fitting for turbocharger	Replace gasket, in order to avoid leakage.	AR09.40-P-6023GZB
17	Install turbocharger	Model 164	AR09.40-P-6020GZB
17	Install turbocharger	Model 251	AR09.40-P-6020RTB
18	Fit bracket (3).	If installed. Press on bracket (3) at turbocharger and contact bolt to turbocharger. Then tighten the threaded connection at the inlet port shutoff and charge air manifold. Tighten bolt on turbocharger last.
18	Fit bracket (3).		*BA09.20-P-1003-01Q
19	Reinstall engine cover	Model 164	AR01.10-P-2405GZB
19	Reinstall engine cover	Model 251	AR01.10-P-2405RTB
20.1	Install strut tower brace	Model 164.8 only Install strut tower brace at spring dome mounts.	AR62.30-P-2500GY
20.2	Remove/install between the wheel well liners	Model 251 only	AR62.30-P-2400RT
	Adjust
21	Depress lever for inlet port shutoff (6) at stop (arrow)
22	Tighten bolt at fastener for inlet port shutoff lever (6)	When adjusting intake port shutoff (6) lever ensure that the intake port shutoff Engine (M55) is held by a spring without energization in the mechanical base position. This position must not be changed or affected by the adjusting procedure.
22	Tighten bolt at fastener for inlet port shutoff lever (6)		*BA09.20-P-1002-01Q

INTAKE MANIFOLD

Number	Designation		Engine 642
BA09.20-P-1002-01Q	Fastener bolt to intake port shutoff lever	Nm	5
BA09.20-P-1003-01Q	Intake port shutoff bracket bolt to intake manifold and turbocharger	Nm	8
