Remove/install charge air manifold - AR09.41-P-1310GZB: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 Mercedes-Benz ML350, 2010 Mercedes-Benz ML350, 2009 Mercedes-Benz ML320, 2009 Mercedes-Benz GL320, and 2008 Mercedes-Benz ML320. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 642 in MODEL 164, 251

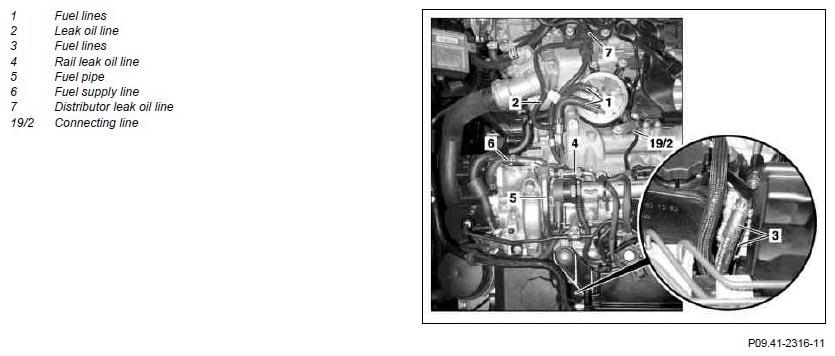

Fig 1: Identifying Charge Air Manifold Components (1 Of 2)
G06878076Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

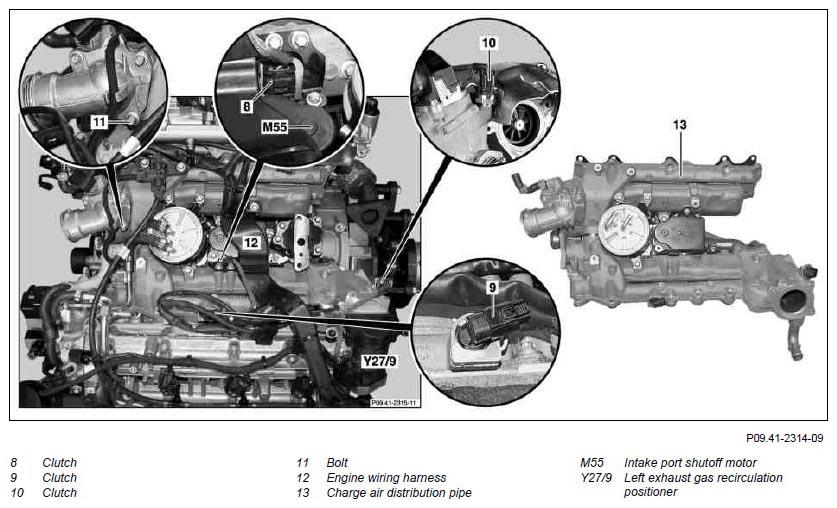

Fig 2: Identifying Charge Air Manifold Components (2 Of 2)
G06878077Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of explosion  from fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure. Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. -
DANGER Risk of injury  to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning  caused by swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
-
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury  to eyes and skin caused by contact with fuel No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. -
1 Drain coolant   AR20.00-P-1142GZB
NOTES Notes on coolant AH20.00-N-2080-01A
2 Remove coolant line from thermostat housing
3 Remove mixing chamber   AR09.20-P-1320GZB
4 Remove turbocharger Model 164 AR09.40-P-6020GZB
Model 251 AR09.40-P-6020RTB
5 Remove oil supply connection fittings for turbocharger   AR09.40-P-6023GZB
6 Remove left rail   AR07.03-P-1010GZB
7 Unscrew union nuts on connecting line (19/2) IMPORTANT To protect against contamination, seal terminals of connecting line (19/2) immediately. Do not crush or deform connecting line (19/2).
TORQUE SPECIFICATION *BA07.16-P-1024-01C
SPECIAL TOOL Figure
8 Detach fuel lines (1) on fuel filter
9 Remove leak oil line (2) from fuel line
10 Detach fuel lines (3)
11 Pull out fuel supply line (6) for high-pressure pump
12 Remove bolts for fuel pipe (5)
13 Remove fuel pipe (5)
14 Remove fuel filter with cage TORQUE SPECIFICATION *BA47.20-P-1001-02D
15 Unscrew distributor leak oil line (7) TORQUE SPECIFICATION *BA07.16-P-1023-01C
16 Disconnect engine wiring harness (12) at control unit
17 Remove glow plug coupling IMPORTANT At left cylinder head only
18 Remove coupling for injectors IMPORTANT At left cylinder head only
19 Remove coupling (8) from engine intake port shutoff (M55)
20 Disconnect connector (10) from exhaust back pressure sensor With code 474 Particulate filter
21 Remove left exhaust gas recirculation positioner (Y27/9)   AR14.20-P-1020GZB
22 Unscrew bottom bolt (11) at thermostat housing TORQUE SPECIFICATION *BA20.10-P-1002-01S
23 Place engine wiring harness (12) to one side
24 Unscrew bolts (13) at charge air manifold IMPORTANT To remove bolts on charge air manifold (13):
See Bolt plan for charge air manifold AR09.41-P-1310-01PI
TORQUE SPECIFICATION *BA09.41-P-1009-01J
25 Remove charge air manifold (13) NOTESInstallation:  Replace seal to prevent leakages.
IMPORTANTInstallation:  Fit cage for fuel filter to secure charge air manifold (13).

26 Install in the reverse order
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
27 Check oil leak-tightness and leak-tightness of the fuel system for a run engine
FUEL FILTER

Number Designation Engine 642
BA47.20-P-1001-02D Bolt, fuel filter cage to charge air distribution pipe Nm 12
COMMON RAIL DIESEL INJECTION (CDI)

Number Designation Engine 642
BA07.16-P-1023-01C Leak oil line on charge air distribution line M623 Nm 12
BA07.16-P-1024-01C Connecting line between left and right rail M15 Nm 27
COOLANT PUMP, COOLANT THERMOSTAT

Number Designation Engine 642
BA20.10-P-1002-01S Bolt, coolant thermostat housing to charge air manifold Nm 9
CHARGE AIR PIPE/CHARGE AIR COOLING

Number Designation Engine 642
BA09.41-P-1009-01J Bolt, charge air distribution line to cylinder head Nm 18
Fig 3: Identifying Set Of Stop Plugs (129 589 00 91 00)
G06878078Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
