Repairing spark plug thread - AR01.30-P-5440GZ (ML500): Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

Thread tapping unit

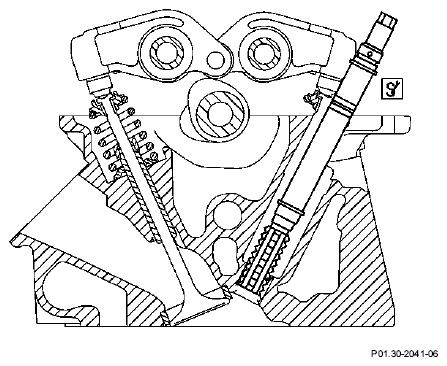

Fig 1: Repairing Spark Plug Thread

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove cylinder head cover		AR01.20-P-5014GZ
2	Remove spark plug	See ↓
		Replace spark plugs	AP15.10-P-1580GZ
3	Position piston of relevant cylinder to 20° - 30° crankshaft angle before TDC	Inlet valve and exhaust valve of the relevant cylinder must be closed.
4.1	Remove cylinder head	It is then only necessary to remove the cylinder head if it is not possible to insert the thread tap unit into the spark plug thread for space reasons!	AR01.30-P-5800GZ
5	Tap thread in spark plug hole and screw in threaded insert	Pack the grooves of the combination thread tap with grease for bonding the metal debris. Blow out cylinder and spark plug thread with compressed air before screwing in the threaded insert.	AR01.30-P-5440-01B
		HELI-COIL repair set	Fig 2
6.1	Crank engine with starter.	If the cylinder head was not replaced, the engine must be cranked several times with the starter.	AR01.10-P-0110GZ
7	Caulk threaded insert		AR01.30-P-5440-02B
8	Install in the reverse order

Fig 2: Identifying HELI-COIL Repair Set (102 589 00 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
