Caulk threaded insert - AR01.30-P-5440-02B

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Heli-Coil Repair Set (102 589 00 99 00)
G04605595Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. Grease caulk drift, SPECIAL TOOL screw into installed HELI-COIL insert and tighten with a torque of approx. 25-30 Nm.

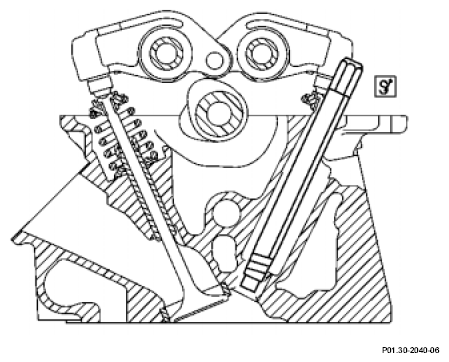

Fig 2: Identifying Caulk Drift
G04605596Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
