Crank engine with starter - AR01.10-P-0110GZ (ML350, ML500, ML550, GL450, GL550)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 113, 272, 273 in MODEL 164, 251
Shown on model 164.1
| Remove/install | |||
|---|---|---|---|
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| Risk of death caused by contact with parts conducting high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system | AS15.10-Z-0001-01A | |
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Switch ignition off, remove ignition key (transmitter key) | Remove the Keyless Go transmitter card or transmitter key from vehicle and store beyond reach of the transmitter (at least 2 m). |
|

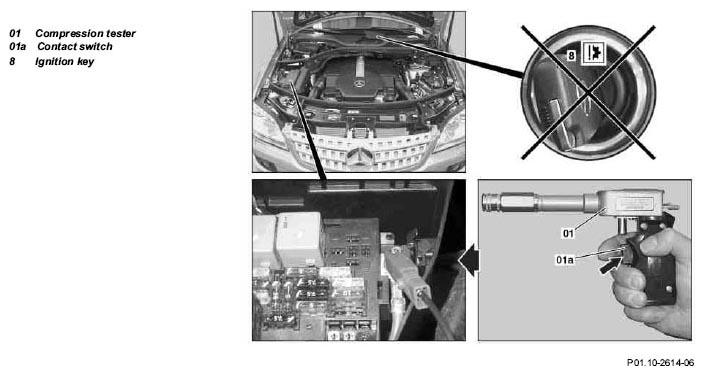

| 2 | Connect up compression recorder (01) | AR01.10-P-0010-01GZ | |
| Figure | |||
| Figure | |||
| 3 | Crank engine with starter | ||
| 4 | Install in the reverse order | ||
| 5 | Read out fault memory and erase if necessary | STAR DIAGNOSIS diagnostic system |
