Remove, install cylinder head cover - AR01.20-P-5014GZS (ML63 AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 164, 251

Shown on left cylinder head cover

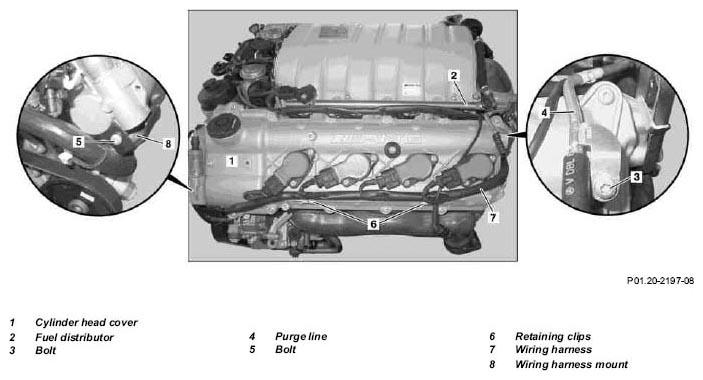

Fig 1: Identifying Cylinder Head Cover Remove/Install Components (Shown On Left Cylinder Head Cover)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel.	No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
1	Turn key in ignition switch to position "0".
2	Open engine hood and raise to vertical position	Model 164	AR88.40-P-1000GZ
		Model 251	AR88.40-P-1000RT
3	Remove engine trim panel
4	Remove the partition wall between the wheelhouses	Model 251 only	AR62.30-P-2400RT
5	Remove air filter housing	Do not tilt front engine cover, but lift upwards vertically otherwise the retaining lugs can break off.	AR09.10-P-1150GZS
6	Reduce fuel pressure with the pressure hose via the service valve		AR07.03-P-1460-01TMG
		Pressure hose	Figure
7	Dismount fuel line at fuel distributor (2)	Catch escaping fuel with an absorbent rag! Seal connections immediately with stop plugs.
		Set of stop plugs	Fig 3
8	Remove ignition coils	Unclip retaining clamps (6) from wiring harness (7) at cylinder head covers.	AR15.12-P-2003GZS
9	Remove bolt (3), remove purge line (4)
10	Remove bolt (5) at wiring harness (8) bracket		*BA01.30-P-1006-01U
11	Loosen bolts of the cylinder head cover (1) in the reverse order of the tightening procedure and remove them		AR01.20-P-5014-03AMG
			*BA01.30-P-1004-01U
12	Remove cylinder head cover (1)	To avoid damaging sealing surfaces, do not use any tool for prying off between cylinder head cover (1) and cylinder head.
13	Install in the reverse order
	Checking
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
14	Conduct engine test run and check the engine for leaks

CYLINDER HEAD

Number	Designation			Engine 156
BA01.30-P-1004-01U	Bolt, cylinder head cover to cylinder head	M6	Nm	8.5
BA01.30-P-1006-01U	Bolt, front cover to cylinder head	M6	Nm	10

Fig 2: Identifying Pressure Hose (119 589 04 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
