Bolt tightening diagram for cylinder head cover - AR01.20-P-5014-03AMG (ML63 AMG)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
CYLINDER HEAD
| Number | Designation | Engine 156 | ||
|---|---|---|---|---|
| BA01.30-P-1004-01U | Bolt, cylinder head cover to cylinder head | M6 | Nm | 8.4 |

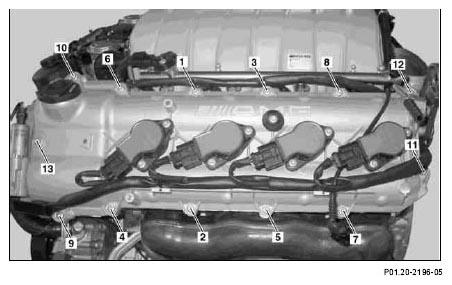

Right cylinder head cover
Tighten cylinder head cover bolts in the numerical sequence.
- Tighten bolts (1 to 13)

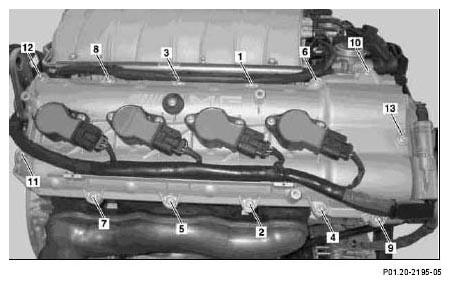

Left cylinder head cover
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Tighten cylinder head cover bolts in the numerical sequence.
- Tighten bolts (1 to 13)
