Remove/install right engine support - AR22.10-P-4340GZA (ML350 4MATIC only)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272.967 in MODEL 164.186

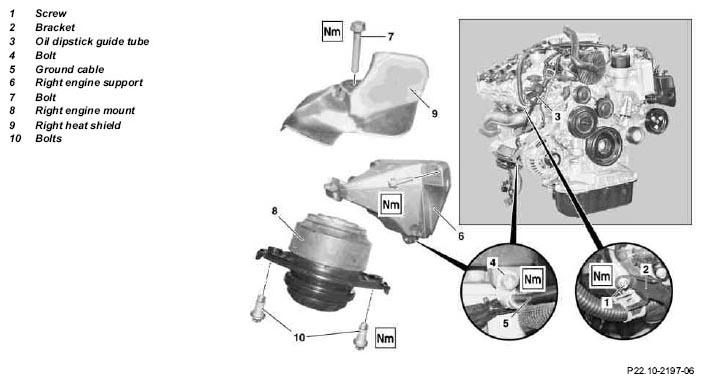

Fig 1: Identifying Right Engine Support Components
G05259960Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
IMPORTANT General information Engine mounts must be replaced in pairs.
1 Disconnect ground cable of battery   AR54.10-P-0003GZ
NOTES Notes on battery   AH54.10-P-0001-01A
2 Remove engine intake air duct
3 Remove front engine cover
4 Remove air filter   AR09.10-P-1150GZA
5 Mount engine carrier arm   AR33.10-P-0100-01GZ
    SPECIAL TOOL Engine hoist Fig 2
6 Remove lower engine compartment paneling   AR61.20-P-1105GZ
7 Remove right catalytic converter   AR49.10-P-7100GZA
8 Remove bolt (1) of bracket (2) for oil dipstick guide pipe (3) on cylinder head TORQUE SPECIFICATION *BA01.30-P-1006-01O
9 Remove bolt (4) of ground lead (5) on right engine support (6) TORQUE SPECIFICATION *BA22.10-P-1001-02A
10 Remove starter IMPORTANT Place starter with attached lines onto front axle carrier. Secure starter against falling down. AR15.30-P-7100GZA
11 Remove bolt (7) for right engine mount (8) on right engine support (6) and remove right heat shield (9) IMPORTANTInstallation:  The right heat shield (9) must be seated in anti-twist lock on right engine support (6).
    TORQUE SPECIFICATION *BA22.10-P-1002-03G
12 Remove bolts (10) connecting right engine mount (8) to front axle carrier TORQUE SPECIFICATION *BA22.10-P-1001-03G
13 Remove bolts (10) connecting left engine mount to front axle carrier TORQUE SPECIFICATION *BA22.10-P-1001-03G
14 Raise engine IMPORTANT When lifting engine make sure that steering coupling and lines are not damaged and that engine does not contact partition wall.
15 Remove right engine mount (8) from below
16 Remove right engine support (6) on crankcase TORQUE SPECIFICATION *BA22.10-P-1001-02A
17 Install in the reverse order
CYLINDER HEAD

Number Designation Engine 272
BA01.30-P-1006-01O Bolt, front cover to cylinder head M6 Nm 9
ENGINE SUPPORT (ENGINE SIDE)

Number Designation Engine 272
BA22.10-P-1001-02A Bolt, engine support to crankcase Stage 1 Nm 20
Stage 2 ∠° 90
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number Designation Model 164
BA22.10-P-1001-03G Bolt, front engine mount to front axle carrier Nm 53
BA22.10-P-1002-03G Bolt, front engine mount to engine support Nm 53
Fig 2: Identifying Engine Lifting Fixture (240 589 00 61 00)
G07741024Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
