Remove/install starter (Engine 272, 273) - AR15.30-P-7100GZA

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164

Shown on model 164.1

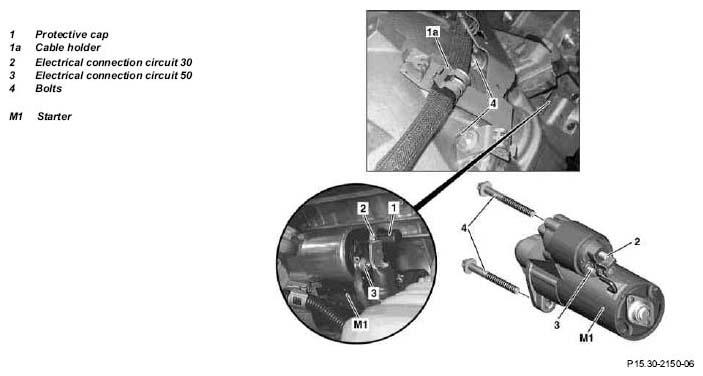

Fig 1: Identifying Starter Remove/Install Components - Shown On Model 164.1 (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

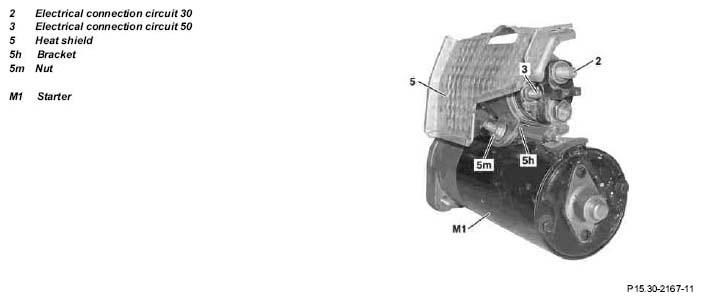

Fig 2: Identifying Starter Remove/Install Components - Shown On Model 164.1 (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect ground cable of battery	Insulate ground line clamp as a protection against unintentional contact of dismounted ground line with ground point of battery.	AR54.10-P-0003GZ
	Notes on battery		AH54.10-P-0001-01A
2	Remove bottom engine compartment paneling		AR61.20-P-1105GZ
3	Remove right catalytic converter	Engine 272	AR49.10-P-7100GZA
4	Unhook nuts (5m), heat shield (5) from bracket (5h) and take off
5	Pry off cable holder (1a) from transmission bracket
6	Undo bolts (4) from starter (M1)		*BA15.30-P-1003-01J
7	Move starter (M1) out of transmission bell housing	First lower starter with attached lines to the rear, then to the front out of the transmission bell housing until the electrical connections are accessible.
8	Pull out protective cap (1) and remove electrical connections circuit 30 (2), 50 (3) at starter (M1)		*BA15.30-P-1001-01J
			*BA15.30-P-1002-01J
9	Take starter (M1) down and out
	Checking
10	Check ring gear on drive plate for wear and damage	Rotate engine at center bolt of crankshaft in the direction of rotation.
11	Install in the reverse order

STARTER

Number	Designation		Engine 272, 273
BA15.30-P-1001-01J	Nut, connection for circuit 30	Nm	15
BA15.30-P-1002-01J	Nut, connection for circuit 50	Nm	8
BA15.30-P-1003-01J	Bolt connecting starter to crankcase	Nm	40
