Drain/fill in coolant - AR20.00-P-1142GZS (ML63 AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 164, 251

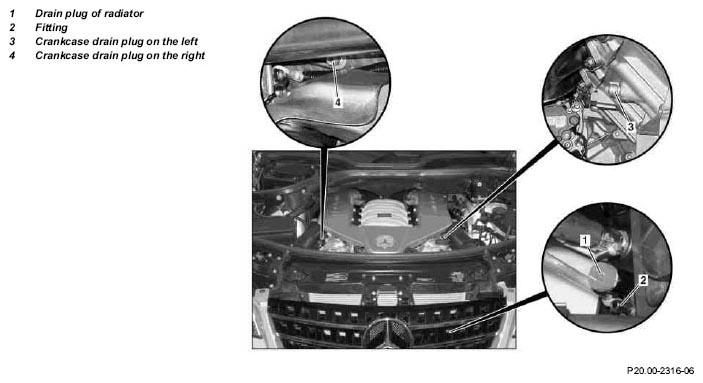

Fig 1: Identifying Radiator Drain Plug And Crankcase Drain Plug

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Drain
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery	All models	AH54.10-P-0001-01A
1	Disconnect ground line from battery	When draining the coolant at the right drain plug (4) on the crankcase
		Model 164	AR54.10-P-0003GZ
		Model 251	AR54.10-P-0003RT
2	Open engine hood	Model 164	AR88.40-P-1000GZ
		Model 251	AR88.40-P-1000RT
3	Open cap on coolant expansion reservoir	Unscrew cap slowly and release excess pressure, then screw down cap.
4	Remove engine compartment paneling	Model 164	AR61.20-P-1105GZ
		Model 251	AR61.20-P-1105RT
	Drain coolant from radiator
5	Slide collector siphon hose onto fitting (2) at radiator	The fitting (2) is located at the bottom left of the radiator.
6	Loosen siphon hose (1) at radiator and drain coolant.	Catch coolant with suitable vessel. Observe regulations for disposal of coolant.
	Drain coolant at crankcase
7	Remove fender liner on the right and left	Model 164	AR88.10-P-1300GZ
		Model 251	AR88.10-P-1300RT
8	Loosen crankcase drain plug on the left (3) and crankcase drain plug on the right (4)	Only loosen drain screws until these can be turned by hand.
9	Push drain hose onto crankcase drain screws
10	Continue to loosen crankcase drain screws by hand and drain of coolant	Catch coolant with suitable vessel. Observe regulations for disposal of coolant.
	Filling
11	Tighten drain plug (1) at radiator and detach siphon hose from fitting (2)	After the coolant is drained at the radiator
12	Detach drain hose from crankcase drain screws	After the coolant is drained at the radiator
13	Tighten crankcase drain plug on the left (3) and crankcase drain plug on the right (4)		*BA03.20-P-1009-01J
14	Pour in coolant and bleed cooling system	Reuse the clean coolant.	AR20.00-P-1142-04A
	Notes on coolant	All engines	AH20.00-N-2080-01A
	Notes on coolant level		AH20.00-P-1142-01GZB
	Coolant specifications	Sheet 310.1	BB00.40-P-0310-01A
	Anticorrosion/antifreeze agents (Sheet 325.0)	Sheet 325.0	BB00.40-P-0325-00A
		Cooling system	*BF20.00-P-1001-02U
		Test cap	Fig 2
		Pressure pump	Fig 3
		Cooler vacuum filling device	Fig 4
15	Screw cap onto coolant expansion reservoir
16	Inspect cooling system for leaks		AR20.00-P-1010GZS
		Hose clamp pliers	Fig 5
		6 mm socket hexagon	*WH58.30-Z-1001-06A
		7 mm socket hexagon	*WH58.30-Z-1002-06A
17	Install lower engine compartment paneling		AR61.20-P-1105GZ
18	Connect ground lead to battery	After tightening the crankcase drain plug on the right (4).
		Model 164	AR54.10-P-0003GZ
		Model 251	AR54.10-P-0003RT
19	Perform basic programming	Only if the ground lead of the battery was disconnected.
		Model 164	AR00.19-P-0200GZ
		Model 251	AR00.19-P-0200RT
20	Close engine hood	Model 164	AR88.40-P-1000GZ
		Model 251	AR88.40-P-1000RT

CRANKSHAFT BEARING CAP

Number	Designation		Engine 156
BA03.20-P-1009-01J	Drain plug for coolant	Nm	15

COOLING SYSTEM

Number	Designation			Engine 156 in model 164, 251
BF20.00-P-1001-02U	Cooling system	Total filling capacity	≈Liters	7.5
		Antifreeze/water	Up to -37°C	50/50
		Antifreeze/water	Up to -45°C	55/45
		Specifications for Operating Fluids	Sheet	BB00.40-P-0310-01A
		Specifications for Operating Fluids	Sheet	BB00.40-P-0325-00A

Fig 2: Identifying Test Cap (210 589 00 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Pressure Pump (124 589 24 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Vacuum-Type Cooling System Filler (285 589 00 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Hose Clamp Pliers (003 589 03 37 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-06A	6 mm socket hexagon on flexible shaft for hose clamps with worm drive
WH58.30-Z-1002-06A	7 mm socket hexagon on flexible shaft for hose clamps with worm drive
