Inspect cooling system for leaks - AR20.00-P-1010GZS (ML63 AMG)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 164, 251

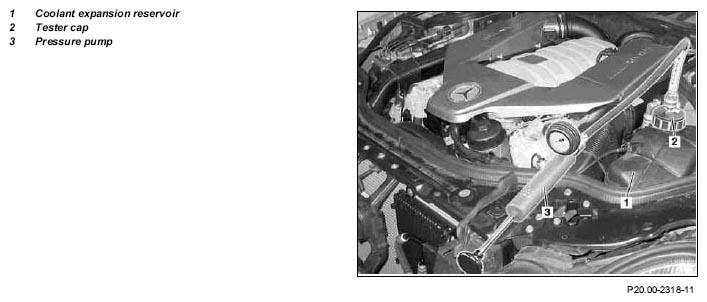

Fig 1: Identifying Coolant Expansion Reservoir, Tester Cap And Pressure Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Checking
	Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood	Model 164	AR88.40-P-1000GZ
		Model 251	AR88.40-P-1000RT
2	Open cap of coolant expansion reservoir (1)	Turn the cap slowly and release the excess pressure, then unscrew the cap.
3	Check coolant level and antifreeze content coolant.	If the antifreeze share of the coolant is too small, either antifreeze must be added or the coolant must be replaced: ↓
		Drain, fill system with coolant.	AR20.00-P-1142GZS
	Notes on coolant	All engines	AH20.00-N-2080-01A
	Note on coolant level		AH20.00-P-1142-01GZB
	Coolant specifications	Sheet 310.1	BB00.40-P-0310-01A
	Anticorrosion/antifreeze agents (Sheet 325.0)	Sheet 325.0	BB00.40-P-0325-00A
4	Screw test cap (2) onto coolant expansion reservoir (1).	Test cap	Fig 2
5	Connect up pressure pump (3) at test cap (2)	Pressure pump	Fig 3
6	Discharge cooling system with test pressure	To prevent damage to the cooling system, do not exceed the stated test pressure
		Test pressure for pressure-testing cooling system	*BE20.30-P-1005-01A
7	Check hose clamps for condition and seating	Retighten or replace hose clamp as required.
		Hose clamp pliers	Fig 4
		6 mm socket hexagon	*WH58.30-Z-1001-06A
		7 mm socket hexagon	*WH58.30-Z-1002-06A
8	Check coolant hoses and heater hoses and their connecting points for condition and coolant loss	Replace coolant hoses and heater hoses if required.
9	Unscrew test cap (2) at coolant expansion reservoir (1).	Slowly unscrew test cap (2) and reduce the excess pressure.
10	Remove pressure pump (3) at test cap (2)
11	Screw on the cap of the coolant expansion reservoir (1)
12	Close engine hood	Model 164	AR88.40-P-1000GZ
		Model 251	AR88.40-P-1000RT

CAP FOR RADIATOR OR EXPANSION RESERVOIR

Number	Designation		2-stage cap
BE20.30-P-1005-01A	Test pressure for pressure-testing cooling system	bar gage	1.4

Fig 2: Identifying Test Cap (210 589 00 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Pressure Pump (124 589 24 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Hose Clamp Pliers (003 589 03 37 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-06A	6 mm socket hexagon on flexible shaft for hose clamps with worm drive
WH58.30-Z-1002-06A	7 mm socket hexagon on flexible shaft for hose clamps with worm drive
