Replace rear crankshaft radial sealing ring - AR03.20-P-3063GZA (ML350, ML550, GL450, GL550): Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

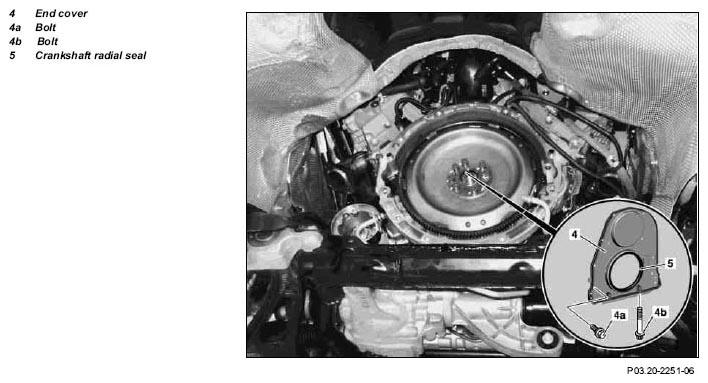

Fig 1: Identifying End Cover, Rear Crankshaft Radial Seal And Bolts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of death when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who are carriers of electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage onboard electrical systems.	-
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Remove key from the ignition lock	Vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove the Keyless Go transmitter card or transmitter key from vehicle and store beyond reach of the transmitter (at least 2 m).
2	Remove driven plate		AR03.30-P-8001GZA
	Clean
3	Clean crankcase and oil pan in area of end cover (4)	Cleaner from package	*BR00.45-Z-1028-04A
4	Remove bolts (4a, 4b)
5	Pry off end cover (4) with crankshaft radial sealing ring (5) from crankcase	Do not hit tool for prying off between end cover (4) and crankcase; the sealing surface will be damaged. Fit tool for prying off onto side recess clearances of end cover (4). If required, heat up sealant with hot air gun.
6	Remove end cover (4)
7	Clean sealing surfaces for end cover (4)	Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Cleaning spray, Loctite 7063 (150ml)	*BR00.45-Z-1046-04A
8	Install end cover (4) with crankshaft radial sealing ring (5)	Always follow instructions in the notes on application of sealant and on correct installation position of the crankshaft radial sealing ring (5) lip; otherwise there can be leaks that can damage the engine and the environment.
		Engine 272	AR03.20-P-3063-01VA
		Engine 273	AR03.20-P-3063-01SX
	Diameter of the crankshaft flange altered	Engine 273.92# ## as of 300194, 273.96# /97# ## as of 300346	BT03.20-P-0003-01A
		Engine 272	*BA01.40-P-1004-01G
		Engine 273	*BA01.40-P-1003-01T
		Insertion tool (engine 272, 273.92 up to engine end no. 300193, 273.96 /97 up to engine end no. 300345 with crankshaft flange Ø = 93 mm)	Fig 2
		Insertion tool (engine 273.92 as of engine end no. 300194, engine 273.96 /97 as of engine end no. 300346 with crankshaft flange Ø = 96 mm)	Fig 3
		Squeeze gun	Fig 4
		Loctite 5970 sealant	*BR00.45-Z-1013-01A
9	Install drive plate		AR03.30-P-8001GZA
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Carry out an engine test run and check engine for leaks
11	Perform basic programming		AR00.19-P-0200GZ

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation		Engine 272
BA01.40-P-1004-01G	Bolt, end cover to crankcase or oil pan	Nm	8

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation		Engine 273
BA01.40-P-1003-01T	Bolt, end cover to crankcase or oil pan	Nm	9

Fig 2: Identifying Insertion Tool (271 589 00 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Insertion Tool (273 589 00 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Squeeze Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite 5970 sealant	A 003 989 98 20
BR00.45-Z-1028-04A	Cleaner from package	Adolf Wurth GmbH & Co. KG Reinhold-Wurth-Str. 12-17 74653 Kunzelsau-Gaisbach Germany Tel. +49 7940 15-0 Fax +49 7940 15-1000 www.wuerth.de
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH Arabellastrasse 17 81925 Munchen Germany Tel. +49 899268-0 Fax + 49 899101978 www.Loctite.de
BR00.45-Z-1046-04A	Cleaning spray, Loctite 7063 (150ml)	A 001 986 71 71 10
