Diameter of the crankshaft flange altered - BT03.20-P-0003-01A
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 273.96# /97# ## as of 300346

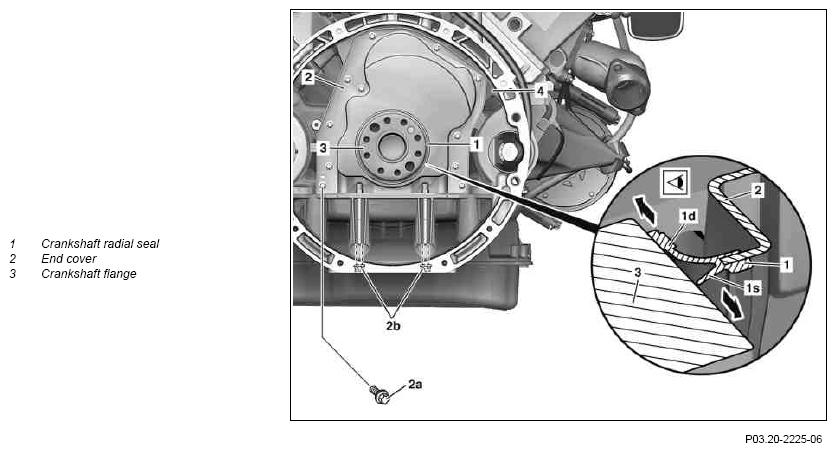

Altered crankshaft flange diameter
As of engine production date 06/10/08 crankshafts were installed whose crankshaft flange (3) had a diameter of 96 mm (it was previously a diameter of 93 mm).
During assembly of the end cover (2) (with a vulcanized crankshaft radial sealing ring (1)), it is therefore necessary to use
the insertion tool as mentioned.
