Remove, install flywheel / drive plate - AR03.30-P-8001GZA (ML350, ML550, GL450, GL550)
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 in MODEL 164, 251
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove automatic transmission | Model 164 | AR27.10-P-0500GZA |
| Model 251 | AR27.10-P-0500RTA | ||
| 2.1 | Install retaining lock for crankshaft (5) and starter ring gear | except model 164.195 | AR03.30-P-5000GZA |

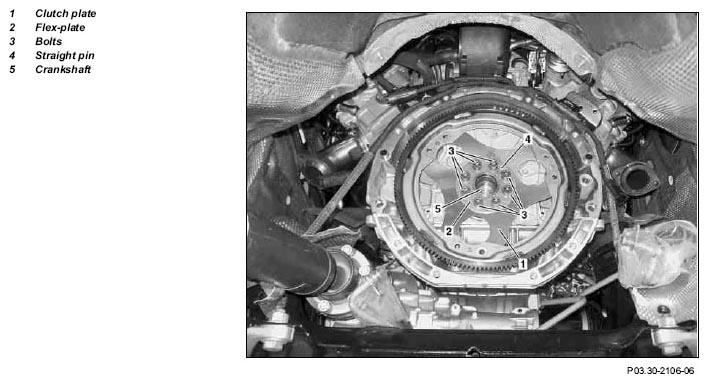

| 2.2 | Place counterholder on crankshaft | Fig 2 | |
| 3 | Remove bolt (3) | ||
| *BA03.30-P-1003-01M | |||
| 4 | Remove flex plate (2) | ||
| 5 | Remove drive plate (1) | ||
| 6 | Install in the reverse order | ||
| 7 | Carry out first initialization and then sensor rotor adaptation using STAR DIAGNOSIS |
STAR DIAGNOSIS diagnostic system |
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 272 | Engine 273 | ||
|---|---|---|---|---|---|
| BA03.30-P-1003-01M | Bolt, flywheel or two-mass flywheel / driven plate to crankshaft | Stage 1 | Nm | 45 | 45 |
| Stage 2 | ∠° | 90 | 90 | ||
