Replace rear crankshaft radial seal - AR03.20-P-3063GZS (ML63 AMG): Notes
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156 in MODEL 164, 251
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | All models | AH00.00-N-0001-01A | |
| 1 | Raise vehicle with lifting platform | Model 164 | AR00.60-P-1000GZ |
| Model 251 | AR00.60-P-1000RT | ||
| 2 | Remove automatic transmission | AR27.10-P-0500GZS | |
| 3 | Install retaining lock for crankshaft/starter ring gear | AR03.30-P-5000GZS | |

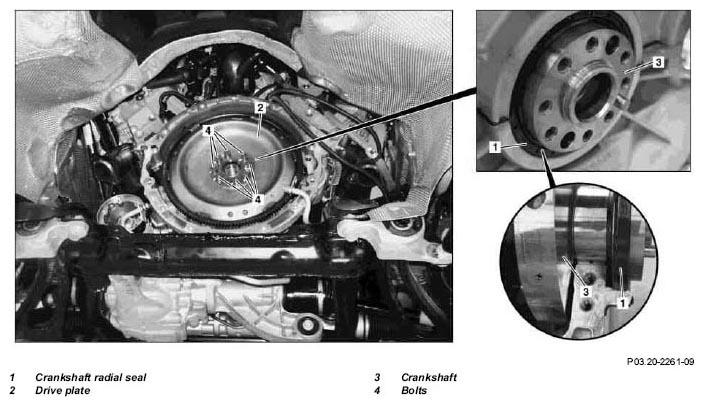

| 4 | Remove bolts (4) from drive plate (2) | AR03.30-P-8001GZS | |
| *BA03.30-P-1002-01Q | |||
| 5 | Remove crankshaft radial sealing ring (1) using a suitable tool. | ||
| Install rear crankshaft radial sealing ring | AR03.20-P-3063-01AMG | ||
| Figure | |||
| 6 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Conduct engine test run and check the engine for leaks |
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 156 | ||
|---|---|---|---|---|
| BA03.30-P-1002-01Q | Bolt, starter ring gear/drive plate to crankshaft | Stage 1 | Nm | 20 |
| Stage 2 | Nm | 45 | ||
| Stage 3 | ∠° | 90 | ||
