Remove, install flywheel / drive plate - AR03.30-P-8001GZS

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156 in MODEL 164, 251 with TRANSMISSION 722

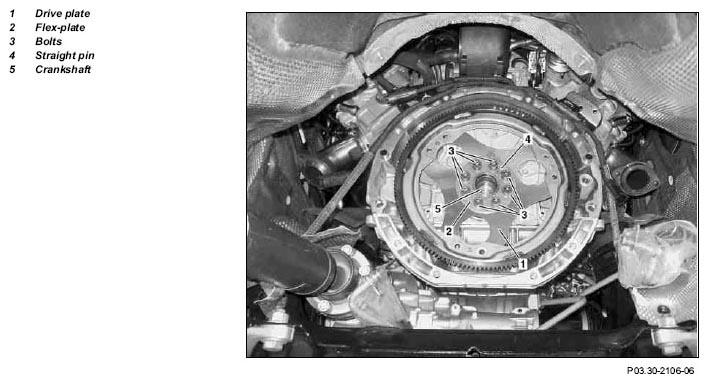

Fig 1: Identifying Flywheel And Drive Plate Components (Model 164, 251)
G05257351Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

22.3.06 Bolt, starter ring gear/drive plate to crankshaft   *BA03.30-P-1002-01Q
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off the lifting platform. Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
1 Remove automatic transmission   AR27.10-P-0500GZS
2 Install retaining lock for crankshaft (5) and starter ring gear   AR03.30-P-5000GZS
3 Remove bolts (3) from drive plate (1) NOTESInstallation:  Replace bolts, because if used again, the connection may loosen and the bolts may shear off.
    TORQUE SPECIFICATION *BA03.30-P-1002-01Q
4 Remove flex plate (2) NOTESInstallation:  The flex plate must be installed back into the same position as bulging caused by the bolts may generate an incorrect torque.
5 Remove drive plate (1) IMPORTANTInstallation:  The straight pin (4) determines the installation position.
6 Install in the reverse order
7 Carry out initialization IMPORTANT If a new drive plate is installed, perform initialization in the ME control unit with STAR Diagnosis in the menu point "Control unit adaptation".
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
    STAR DIAGNOSIS diagnostic system *WH58.30-Z-1048-13A
FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number Designation Engine 156
BA03.30-P-1002-01Q Bolt, starter ring gear/drive plate to crankshaft Stage 1 Nm 20
Stage 2 Nm 45
Stage 3 ∠° 90
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS diagnostic system, Compact Passenger Car 6511 1801 00
