Removing/installing piston rings - AR03.10-P-7311GZ: Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

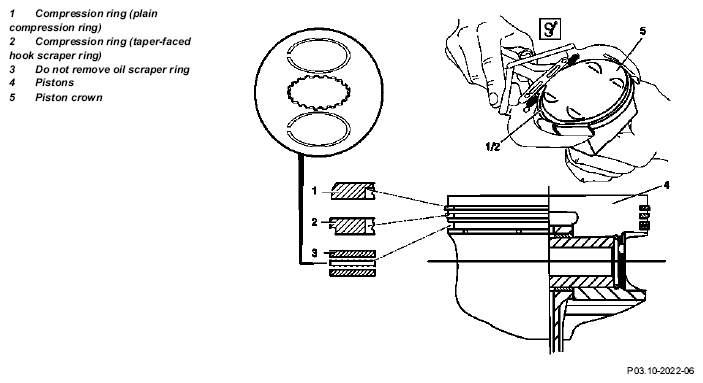

Fig 1: Identifying Piston Rings Components - Model 164.175

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
1	Remove pistons		AR03.10-P-7021GZ
2	Remove compression ring (plain compression ring) (1) and compression ring (flat taper-faced ring) (2) using pliers from piston (4)	Pliers	Figure
3	Remove oil scraper ring (3) from piston (4)	The oil scraper ring is in three parts and must be removed by hand.
	Installing
4	Measure ring width of compression ring (plain compression ring) (1) and compression ring (flat taper-faced ring) (2)		*BE03.10-P-1003-05B
5	Measure end gap of compression ring (plain compression ring) (1) and compression ring (flat taper-faced ring) (2)		AR03.10-P-7311-02VT
			*BE03.10-P-1002-05B
		Feeler gauge	*WH58.30-Z-1004-12A
6	Insert compression ring (plain compression ring) (1) and compression ring (flat taper-faced ring) (2) using pliers from piston (4)	Pay attention to the installation position of the compression rings. The "Top" marking or manufacturer's designation must face towards the piston crown (5).
7	Measure side clearance from compression ring (plain compression ring) (1) and from compression ring (flat taper-faced ring) (2)		AR03.10-P-7311-01VT
			*BE03.10-P-1001-05B
		Feeler gauge	*WH58.30-Z-1004-12A
8	Fit the oil scraper ring (3) by hand
9	Install pistons	The piston ring gaps must be offset by 120°.	AR03.10-P-7021GZ

INSPECTION DATA FOR PISTON RINGS

Number	Designation			Engines 113.960/961/ 962/963/964/ 965/968/971
BE03.10-P-1001-05B	Piston ring vertical clearance	Groove 1	mm	0.012...0.060
BE03.10-P-1001-05B	Piston ring vertical clearance	Groove 2	mm	0.010...0.030
BE03.10-P-1002-05B	Piston ring end gap	Groove 1	mm	0.200...0.350
BE03.10-P-1002-05B	Piston ring end gap	Groove 2	mm	0.200...0.400
BE03.10-P-1003-05B	Dimension	Plain compression ring	mm	97.0 X 1.5 X 3.1
BE03.10-P-1003-05B	Dimension	Taper-faced hook scraper ring	mm	97.0 X 3.5 X 3.5

Fig 2: Identifying Pliers (000 589 51 37 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1004-12A	Feeler gauge
