Remove/install antenna - AR82.70-P-8951TE

MODEL 211.0 up to 31.5.06 with CODE (354) Telephone antenna (D and E nets) except CODE (521) MB Audio 50 radio USA (without navigation) except CODE (525) MB Audio 50 APS radio except CODE (526) COMAND (without navigation) except CODE (527) COMAND APS (with navigation) except CODE (528) HIGH Class USA except CODE (529) HIGH Class Japan except CODE (530) COMAND APS USA (with navigation system)

MODEL 211.0 as of 1.6.06 with CODE (354) Telephone antenna (D and E nets) with CODE (413) Panoramic sliding roof except CODE (521) MB Audio 50 radio USA (without navigation) except CODE (525) MB Audio 50 APS radio except CODE (526) COMAND (without navigation) except CODE (527) COMAND APS (with navigation) except CODE (528) HIGH Class USA except CODE (529) HIGH Class Japan except CODE (530) COMAND APS USA (with navigation system)

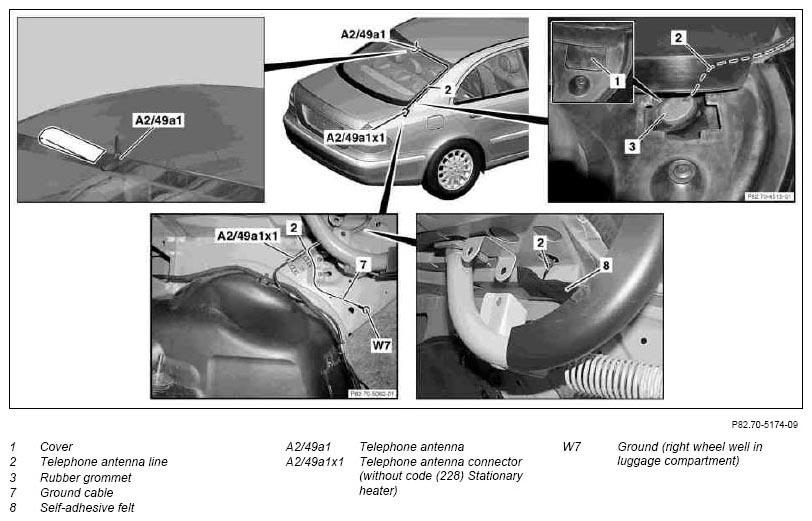

Fig 1: Identifying Antenna Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Vehicles with stationary heater (code 228)

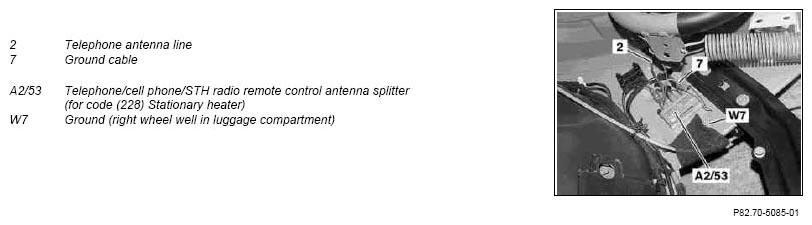

Fig 2: Identifying Telephone Antenna Line, Ground, Cable And Telephone/Cell Phone/STH Radio Remote Control Antenna Splitter

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove right side paneling in trunk	On vehicles with code (287) Through-loading feature.	AR68.30-P-4800TA
		On vehicles without code (287) Through-loading feature or without code (924) Bivalent natural gas drive.	AR68.30-P-4800T
		On vehicles with code (924) Bivalent natural gas drive.	AR68.30-P-4800TB
2	Detach self-adhesive felt (8) and expose telephone antenna line (2)	Observe installation position of telephone antenna line (2). Installation:  Attach telephone antenna line (2) using self-adhesive felt (8), as otherwise telephone antenna line (2) may be damaged at the trunk lid hinge.
3.1	Disconnect telephone antenna connector (A2/49a1x1)	On vehicles without code (228) Stationary heater.
3.2	Detach telephone antenna line connector (2) from telephone/cell phone/STH radio remote control antenna splitter (A2/53).	On vehicles with code (228) Stationary heater.
4	Undo nut on ground of right luggage compartment wheel well (W7) and remove ground line (7)
5	Remove cover (1)
6	Remove telephone antenna line (2) with grommet (3) out of the cable duct	Note installation of lines for telephone antenna line (2) in luggage compartment. Installation:  Coat rubber grommet (3) with soapy water.
7	Withdraw telephone antenna line (2) out of rear window rubber sealing	Installation:  Insert telephone antenna line (2) into the rear window rubber sealing using a suitable feeler gauge.	Figure
8	Detach telephone antenna (A2/49a1) from rear window using assembly wedge, remove and then remove adhesive residues on rear window using cleaning agent	Installation:  Glue on telephone antenna (A2/49a1). If the old telephone antenna is being re-used (A2/49a1), use prescribed adhesive foil.	AR82.70-P-8951-01TT
			Figure
		Cleaner	*BR00.45-Z-1025-04A
		Glass primer	*BR00.45-Z-1023-02A
		Adhesive foil	*BR00.45-Z-1079-02A
9	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
