Remove/install side paneling in trunk - AR68.30-P-4800TB

MODEL 211.0 with CODE (924) Bivalent natural gas drive

Shown on paneling on left

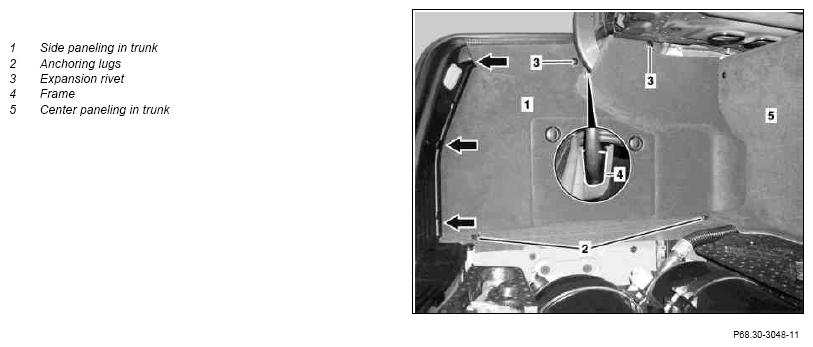

Fig 1: Identifying Trunk Side Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Remove center paneling in trunk (5)		AR68.30-P-4810TA
2	Remove anchoring lugs (2)	Note correct installation positions.
3	Remove expansion rivets (3)
4	Remove frame (4).
5	Fold side paneling in trunk (1) out on rear wall and remove from trunk.	Installation:  Ensure that side paneling in trunk (1) is seated correctly in relation to rear center section paneling (arrows).
6	Install in the reverse order
