Remove, install detachable parts when replacing rear window - AR67.20-P-2100T

MODEL 211.0

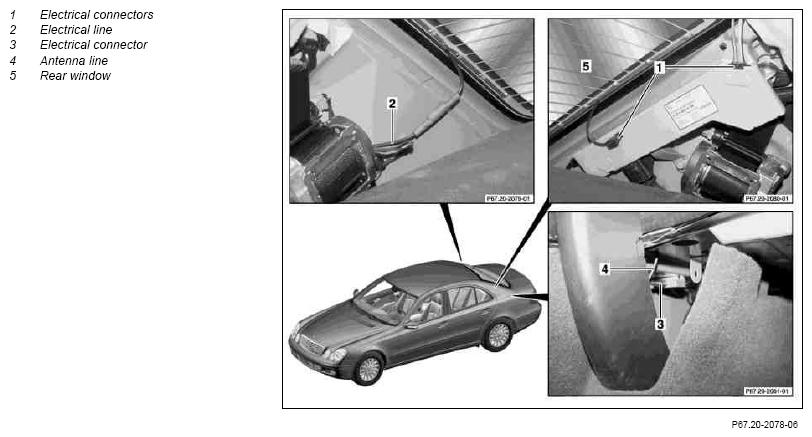

Fig 1: Identifying Rear Window Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove paneling on left and right C-pillar		AR68.30-P-4490T
2	Separate electrical connectors (1)
3	Unscrew nut from electrical line (2).
4	Remove left and right paneling from rear fender		AR88.10-P-1200T
5	Loosen side paneling in trunk	Loosen left and right side paneling in trunk until antenna lead (4) and electrical connector (3) are accessible.
6	Remove telephone antenna (A2/49a1)	Installation:  Install telephone antenna (A2/49a1) on rear window (5) and insert antenna lead (4) into seal on rear window (5). After installing rear window (5), route antenna lead (4) into trunk and connect electrical connector (3).
		On vehicles up to 31.5.06 with code 521 MB Audio 50 USA radio (without navigation) or with code 525 MB Audio 50 APS radio or with code 526 COMAND (without navigation) or with code 527 COMAND APS (with navigation) or with code 528 HIGH Class USA or with code 529 HIGH Class Japan or with code 530 COMAND APS USA (with navigation) On vehicles as of 1.6.06 with code 413 Panoramic sliding roof and code 525 MB Audio 50 APS radio or code 526 COMAND (without navigation) or code 527 COMAND APS (with navigation) or code 529 HIGH Class Japan	AR82.70-P-8951T
		On vehicles up to 31.5.06 with code 354 Antenna for telephone (D and E-net) and without code 521 MB Audio 50 USA radio (without navigation) or without code 525 MB Audio 50 APS radio or without code 526 COMAND (without navigation) or without code 527 COMAND APS (with navigation) or without code 528 HIGH Class USA or without code 529 HIGH Class Japan or without code 530 COMAND APS USA (with navigation) On vehicles as of 1.6.06 with code 354 Antenna for telephone (D and E-net), with code 413 Panoramic sliding roof and without code 521 MB Audio 50 USA radio (without navigation) and without code 525 MB Audio 50 APS radio and without code 526 COMAND (without navigation) and without code 527 COMAND APS (with navigation) and without code 528 HIGH Class USA and without code 529 HIGH Class Japan and without code 530 COMAND APS USA (with navigation)	AR82.70-P-8951TE
7	Install in the reverse order
