Remove/install paneling on rear fender - AR88.10-P-1200T

MODEL 211.0

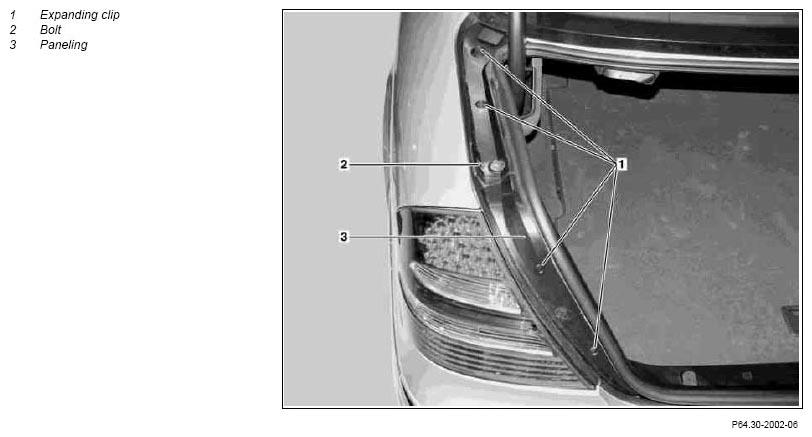

Fig 1: Identifying Rear Fender Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Open trunk lid	See Operating Instructions
2	Unclip expanding clip (1)
3	Remove bolt (2)
4	Detach paneling (3)
5	Install in the reverse order
