Headlamp control, function - GF82.10-P-2009TM

MODEL 211.0 /2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version except CODE (614) Bi-xenon headlamp unit except CODE (618) Bi-xenon headlamps except CODE (621) Intelligent Light System (left-hand traffic) except CODE (622) Intelligent Light System (right-hand traffic)

MODEL 211.0 /2 as of 1.7.06 with CODE (494) USA version except CODE (614) Bi-xenon headlamp unit except CODE (622) Intelligent Light System (right-hand traffic)

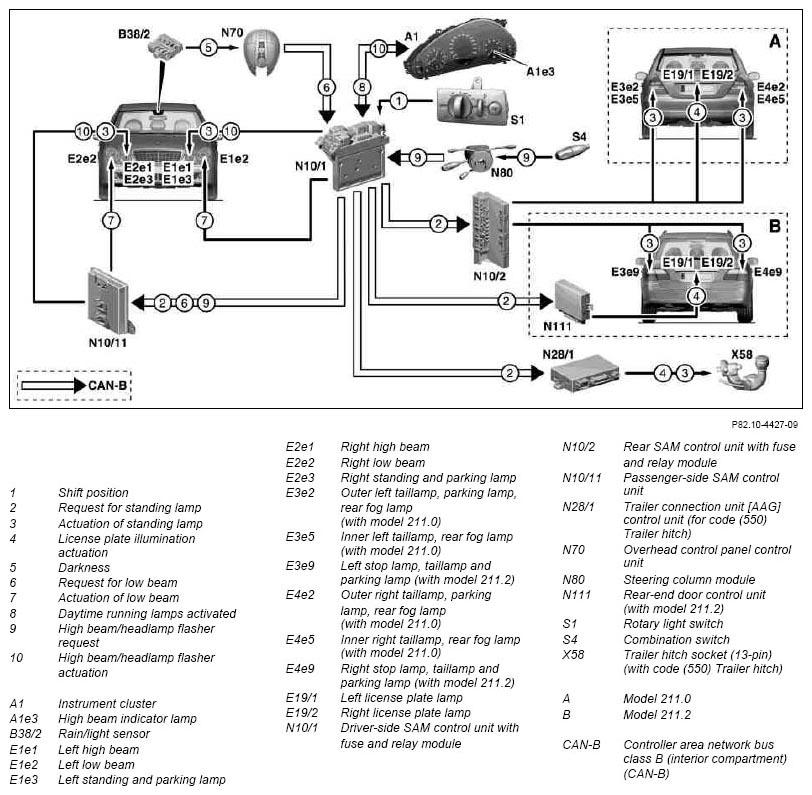

Fig 1: Networking Of Headlamp Control Components
G07504481Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Low beam, high beam, daytime running lamps, automatic headlamps actuation

Low beam actuation

Function requirements

Function

The driver-side SAM control unit reads in the position of the rotary light switch, forwards the request over CAN-B to the front passenger-side SAM control unit and actuates the left low beam.

The front passenger-side SAM control unit actuates the right low beam.

IMPORTANT The standing lamps remain actuated when the low beam is switched on. If the transmitter key (A8/1) is removed and the driver door opened, a lights-on warning is issued by the instrument cluster.

High-beams actuation

Function requirements

High beam function

Headlamps actuation is requested by pressing the combination switch forwards.

The steering column module detects the position of the combination switch and places the request on the CAN-B. The driver-side SAM control unit evaluates it, actuates the left high beam and places a corresponding signal on the CAN-B. This signal is received by the front passenger-side SAM control unit and the instrument cluster.

The front passenger-side SAM control unit actuates the right high beam.

The instrument cluster actuates the blue high beam indicator lamp.

Headlamp flasher function

In contrast to the high beam function request, the combination switch is pulled back and held in this position. The function sequence and signal path for the headlamp flasher function are identical to the high beam function.

The high beam actuation remains active for as long as the combination switch is held in the headlamp flasher position.

Daytime running lamps actuation

Function requirements

Function

The instrument cluster sends the status of the daytime running lamps function over CAN-B to the following control units:

IMPORTANT The daytime running lamps have a higher priority than the automatic headlamps actuation.

In countries with statutory daytime running lamp regulations, only the headlamp flasher is permitted in daytime running lamp mode, but not the high beam. High beam is only permissible if the headlamps have been manually switched on using the rotary light switch.

Actuations

Automatic headlamp actuation

Function requirements

Function as at start of journey:

Function as at end of journey:

Function while driving

The overhead control panel control unit evaluates the rain/light sensor signals. If darkness is detected, the request is sent over CAN-B to the driver-side SAM control unit and forwarded from there to the front passenger-side SAM control unit, rear SAM control unit and, with model 211.2, to the rear-end door control unit.

On vehicles with code (550) Trailer hitch, the request is additionally detected by the trailer connection unit [AAG] control unit over CAN-B.

Function during wiper startup

Upon activation of the windshield wiper system for min. 20 s with a wipe cycle period of less than 6 s, the headlamps are switched on. If there are no wipe cycles for min. 20 s, the headlamps are switched off.

Actuations

Headlamp range adjustment (HRA)

Function requirements

Function

The HRA [LWR] is installed as passive safety equipment to prevent any dazzling of the oncoming traffic in vehicles with halogen headlamps.

The HRA [LWR] maintains the incline angle of the headlamps dependent on the vehicle load and the position of the HRA [LWR] selector wheel (S1s8) within the legally prescribed limits.

The HRA [LWR] selector wheel can be used to select the following positions:

Actuation of the left headlamp range adjustment motor (E1m1) and the right headlamp range adjustment motor (E2m1) is performed directly over the HRA [LWR] selector wheel via the driver-side SAM control unit.

Instrument cluster, component description A1 GF54.30-P-6000TM
Rain/light sensor location/task/function B38/2 GF54.21-P-4123Q
Headlamp leveling system motor, location/task/design/function E1m1, E2m1 GF82.10-P-2101T
Driver-side SAM control unit with fuse and relay module, location/task/design N10/1 GF54.21-P-4109T
Rear SAM control unit with fuse and relay module, location/task N10/2
Model 211.0 GF54.21-P-4130T
Model 211.2 GF54.21-P-4130TA
Front passenger-side SAM control unit with fuse and relay module, location/task/design N10/11 GF54.21-P-4111T
Trailer recognition control unit, location/task N28/1
With code (550) Trailer hitch		 GF82.10-P-2106T
Overhead control panel control unit, location/task/design N70 GF82.20-P-4110T
Electronic ignition switch control unit, location/task N73 GF80.57-P-4120T
Steering column module, location/task N80 GF54.21-P-4125T
Rear-end door control unit, location/task N111
Model 211.2		 GF68.80-P-4002TA
Rotary light switch module, location/task/design S1 GF82.10-P-4104T
