Instrument cluster, component description - GF54.30-P-6000TM
MODEL 211.0 /2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version
MODEL 211.0 /2 as of 1.7.06 with CODE (494) USA version with CODE (498) Japan version

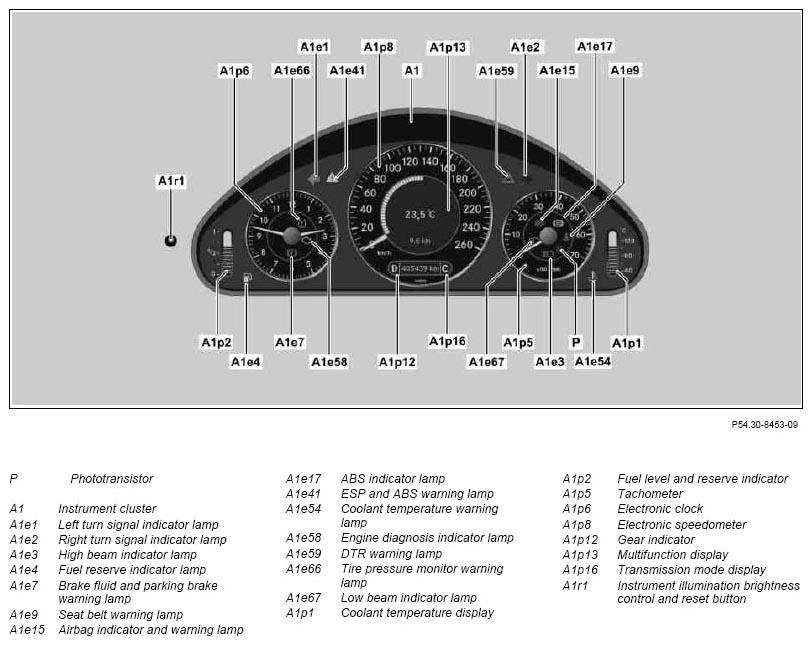

Shown except code (494) USA version

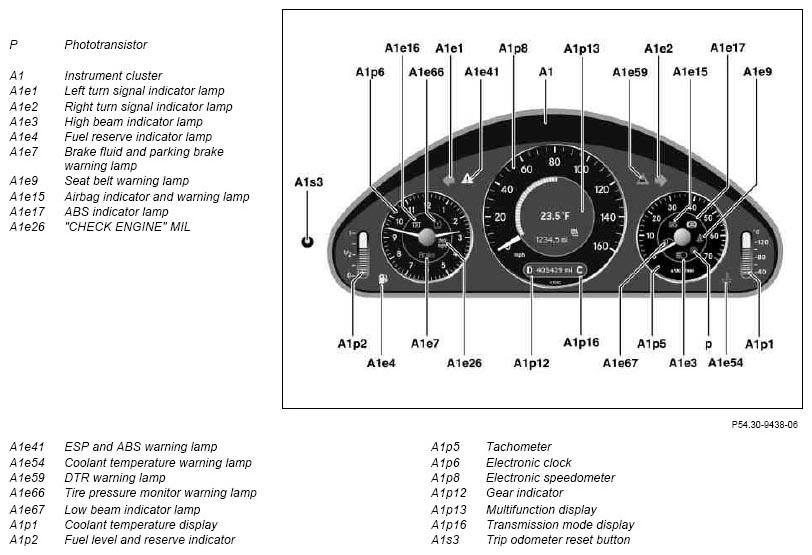

Shown with code (494) USA version
Location
The instrument cluster is located in the instrument panel.
Task
The instrument cluster shows the dynamic and static vehicle condition visually.
The following 6 displays form the basis of information for the driver:
- Electronic speedometer
- Tachometer
- Electronic clock
- Multifunction display
- Coolant temperature display
- Fuel level and reserve indicator
