Driver-side SAM control unit with fuse and relay module, location/task/design - GF54.21-P-4109T
MODELS 211.0 /2 /6

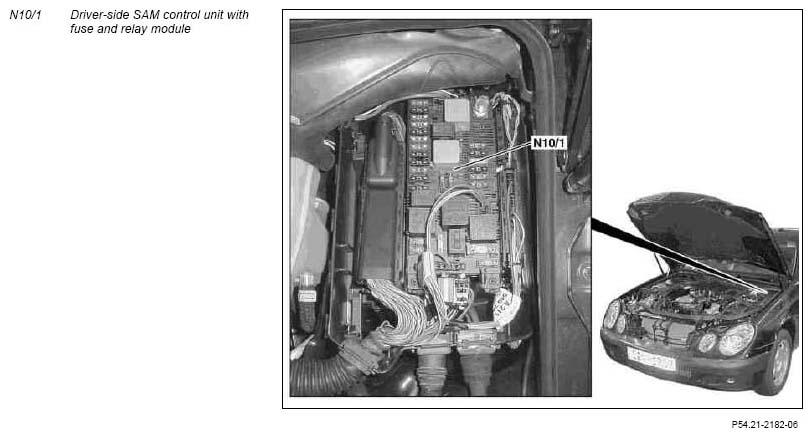

| Driver-side SAM control unit with fuse and relay module, location | The driver-side SAM control unit with fuse and relay module (N10/1) is located in the engine compartment near the left hood hinge (looking towards front of vehicle). | |
| Driver-side SAM control unit with fuse and relay module, task | GF54.21-P-4109-01T | |
| Driver-side SAM control unit with fuse and relay module, design | The driver-side SAM control unit with fuse and relay module (N10/1) is contained in a sturdy plastic housing. Various fuses and relays are attached to the control unit on a supporting bracket. |
