Passenger-side SAM control module with fuse and relay module, location/task/design - GF54.21-P-4111T

MODELS 211.0 /2 /6

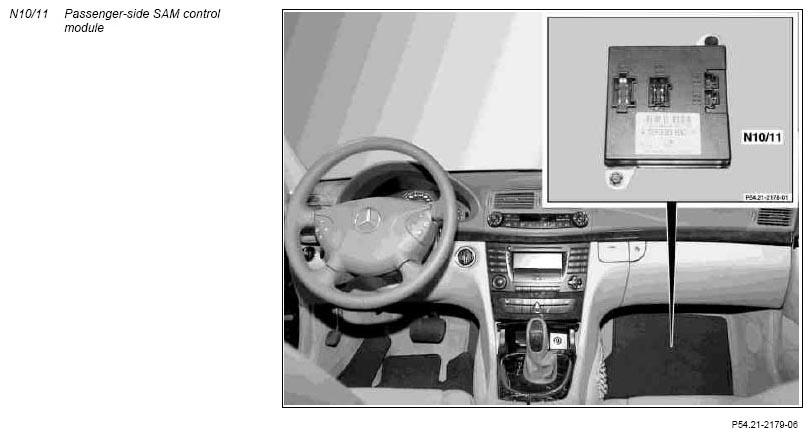

Fig 1: Locating Passenger-Side SAM Control Module

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Passenger-side SAM control module with fuse and relay module, location	The passenger-side SAM control module (N10/11) is located in the right front footwell.
Passenger-side SAM control module with fuse and relay module, task		GF54.21-P-4111-01T
Passenger-side SAM control module with fuse and relay module, design	The front passenger SAM control unit (N10/11) is accommodated in a plastic housing and on a stable carrier plate.
