Low-beams actuation, function - GF82.10-P-3002T

MODEL 211.0 /2 up to 31.5.06 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with integrated curve illumination except CODE (494) USA version except CODE (498) Japan version

MODEL 211.0 /2 up to 30.6.06 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with integrated curve illumination with CODE (494) USA version with CODE (498) Japan version

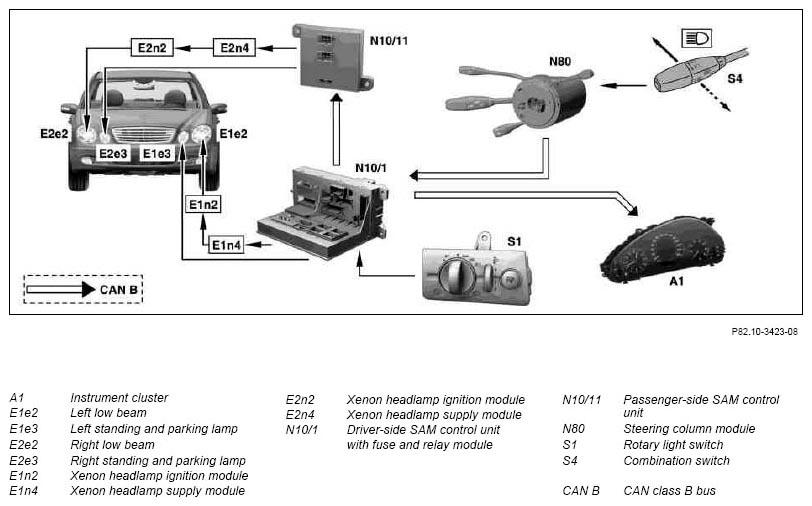

Fig 1: Low-Beams Actuation CAN Communication Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Networking of components, shown on model 211.0

Function requirements

Circuit 61 On or
Engine speed > 300 RPM for t < 2 s
Combination switch (S4) in center position (low beam switch position)

Function

The rotary light switch (S1) is set to the low beam position and notifies the driver-side SAM control unit with fuse and relay module (N10/1) "Daytime running lights on".

The driver-side SAM control unit with fuse and relay module (N10/1) actuates the left low beam (E1e2) in the left front lamp unit (E1) and transmits the signal via CAN class B to the passenger-side SAM control unit (N10/11).

The passenger-side SAM control unit (N10/11) actuates the right low beam (E2e2) in the right front lamp unit (E2).

The standing lamp in the left front (E1) and right front (E2) lamp unit is still actuated when the driving lights are switched on.

Actuation of the instrument cluster (A1) with the "driving lights On" signal triggers a chime if the transmitter key (A8/1) has been removed and the driver door is open.

Driver-side SAM control unit with fuse and relay module, location/task/design	GF54.21-P-4109T
Front passenger-side SAM control unit with fuse and relay module, location/task/design	GF54.21-P-4111T
Rotary light switch module, location/task/design	GF82.10-P-4104T
Steering column module, location/task	GF54.21-P-4125T
Electronic ignition switch control unit, location/task	GF80.57-P-4120T
Xenon headlamp ignition unit, location/task	GF82.10-P-2105T
Xenon headlamp control unit, location/task	GF82.10-P-2104T
Xenon headlamp, location/design/function	GF82.10-P-2007T
