Xenon headlamp control unit, location/task - GF82.10-P-2104T
MODEL 211.0 /2 up to 31.5.06 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with integrated curve illumination except CODE (494) USA version except CODE (498) Japan version
MODEL 211.0 /2 up to 30.6.06 with CODE (614) Bi-xenon headlamp unit with CODE (615) Bi-xenon headlamp unit with integrated curve illumination with CODE (494) USA version with CODE (498) Japan version

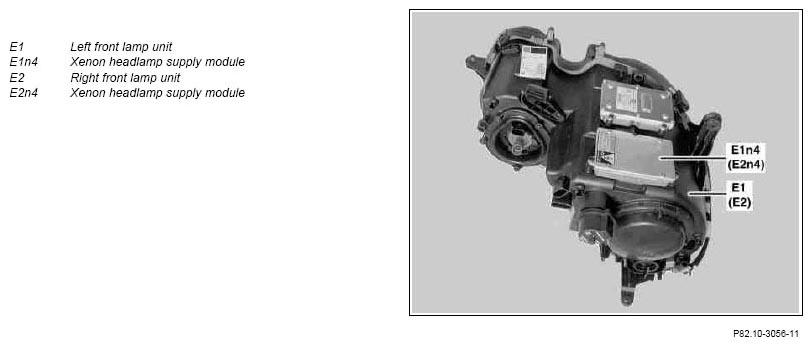

Shown on the left front headlamp unit (E1), bottom side
| Xenon headlamp control unit, location | The xenon headlamp supply module (E1n4) and xenon headlamp supply module (E2n4) are mounted to each respective left front (E1) or right front (E2) lamp unit at the bottom. | |
| Xenon headlamp control unit, task | GF82.10-P-2104-02T |
